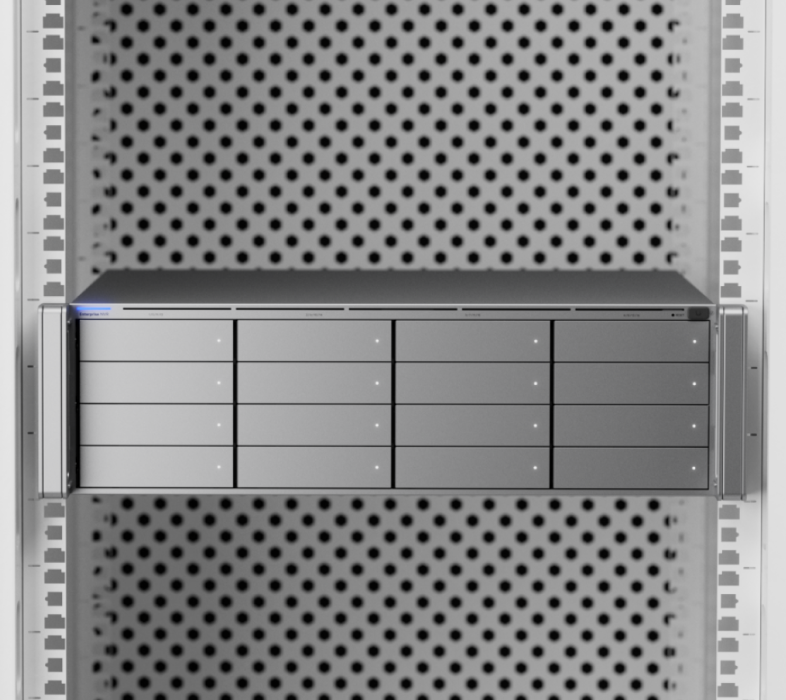

Ubiquiti Enterprise Surveillance Hub (ENVR)
For ordering information and pricing, please contact us.
Key Features

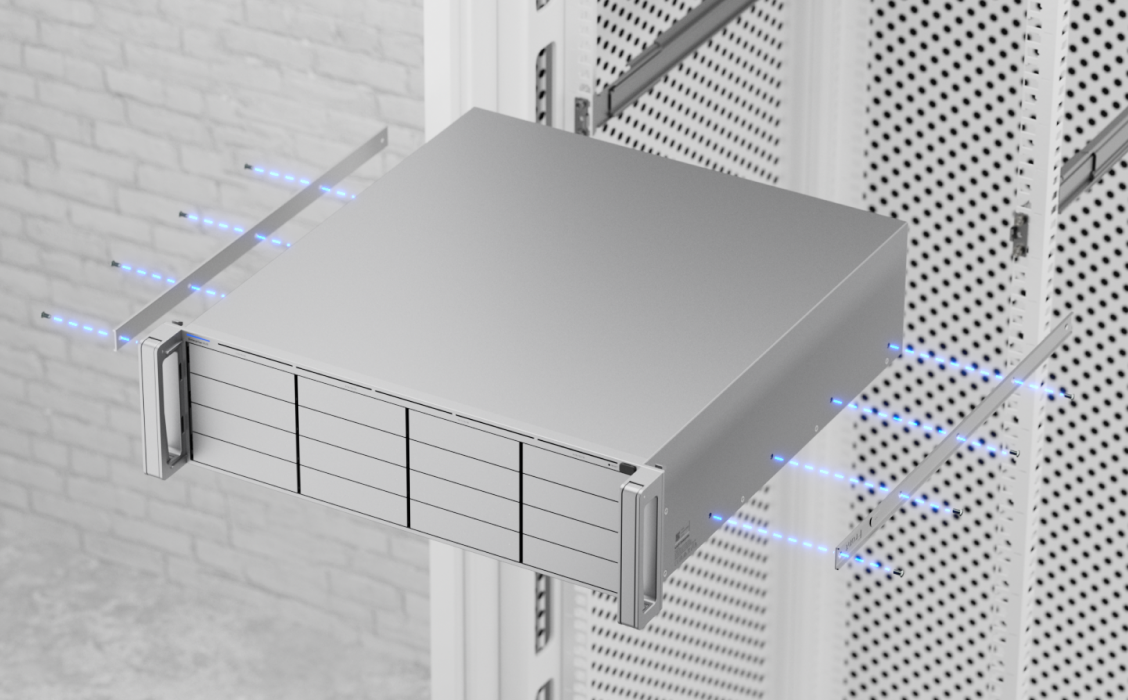

- 3U rack-mountable NVR
- 16x 2.5"/3.5" drive bays
- Up to 70 4K cameras or 210 Full HD cameras
- 32 GB RAM
- 10G SFP+ uplink
- RAID storage support
- Redundant hot-swap PSUs
- UniFi Protect management
Specifications
| Storage | |
|---|---|
| Drive Bays | 16x 2.5"/3.5" (hot-swappable) |
| RAID | Supported |
| Performance | |
| Camera Support | Up to 70 4K / 210 Full HD |
| Memory | 32 GB |
| Networking | |
| Ethernet | 1x 10 GbE RJ45 |
| SFP+ | 2x 10G SFP+ |
| Power | |
| Input | 2x AC 100-240V, 50/60Hz (redundant, hot-swap) |
| Max Consumption | 410W |
| PSU | 550W CRPS (hot-swappable) |
| Physical | |
| Form Factor | 3U Rack mount |
| Dimensions | 481.4 x 480 x 132mm (19 x 18.9 x 5.2") |
| Weight | 16.6 kg (36.6 lb) without rails |
| Management | |
| Platform | UniFi Protect |
