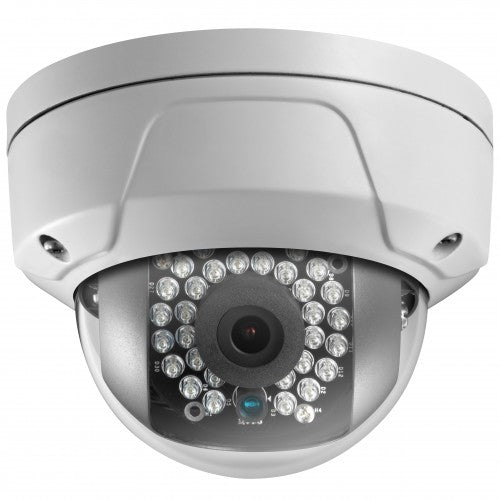

![AC334-OD 1080P Dome Camera](http://securitysystemdepot.com/cdn/shop/products/1294-tm_large_default_13350512-4725-44a1-9b5b-c5ef503b3a57_{width}x.jpg?v=1586439382)
Camera
Menu
General
- Image Sensor: 2MP CMOS Image Sensor
- Signal System: PAL/NTSC
- Effective Pixels: 1920(H)*1080(V)
- Min. illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
- Shutter Time: 1/25(1/30)s to 1/50,000s
- Lens: 2.8mm, 3.6mm, 6mm @ F1.2
- Lens Mount: M12
- Day & Night: ICR
- Angle Adjustment: Pan 0 - 360 degrees, Tilt 0 - 75 degrees, Rotation 0 - 360 degrees
- Synchronization: Internal synchronization
- WDR: >120dB
- Video Frame Rate: 1080p@25fps / 1080p@30fps
- HD Video Output: 1 Analog HD output
- S/N Ratio: >62dB
Menu
- Camera ID: On/Off (0 - 255)
- AGC: Support
- D/N Mode: Color/BW/Smart
- White Balance: ATW/MWB
- BLC: Support
- Functions: Wide Dynamic Range, Digital noise reduction, Mirror, Smart IR
General
- Power Supply: 12VDC+-15%
- Power Consumption: Max. 5W
- Protection Level: IP66
- IR Range: Up to 20m
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions: 91mm x 82.6mm x 68.3mm (3.58" x 3.25" x 2.69")
- Weight: 350g
