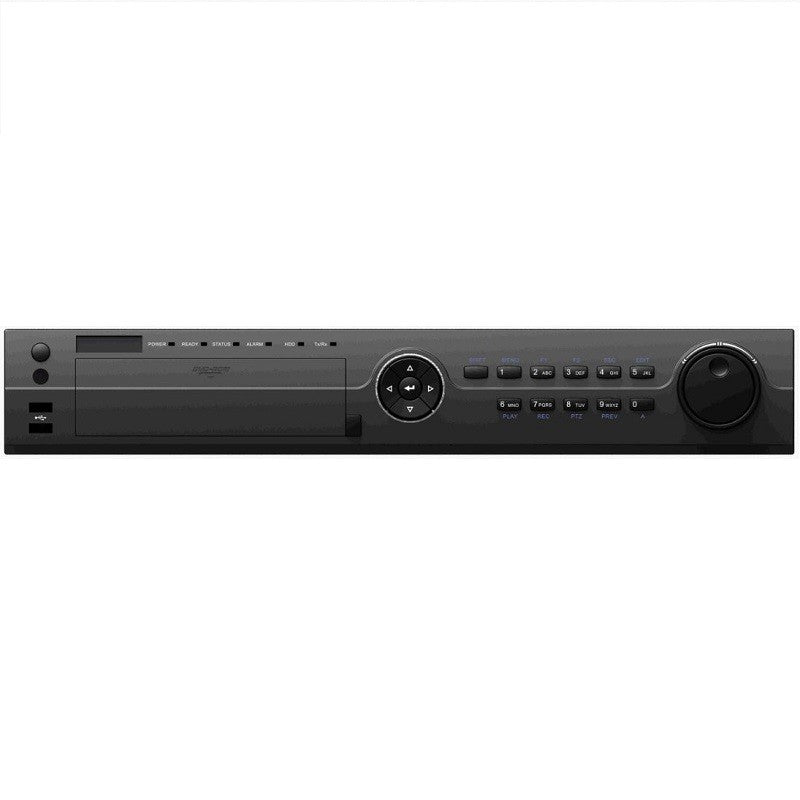

AR526-32

AR526-32


Your Price: (Dealers Only)
Shipping calculated at checkout.

  • H.265/H.265+ compression
  • 32-ch HD-TVI/AHD/Analog cameras video&audio input
  • 32-ch video&4-ch audio input,
  • 5MP@12fps, 4MP@15fps, 3 MP@18fps, 1080P@30 fps/ch,
  • alarm I/O: 4/1, 4K UHD output,support CVBS output,
  • 2 RJ45 ethernet interface, 4 SATA interface, standalone 1.5U case

DATA SHEET


AR526 -32
Power Supply 100 to 240 VAC
Dimensions 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
IP Video Input 8-ch (up to 40-ch) Up to 8 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output HDMI1/VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding Resolution 8MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Stream Type Video, Video & Audio
Synchronous Playback 16-ch
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA 4 SATA interfaces
Capacity Up to 8 TB capacity for each disk
Serial Interface RS-232, RS-485 (full-duplex), Keyboard
Consumption (without hard disks) ≤ 74 W
Weight (without hard disks) ≤ 7 kg (15.4 lb)
USB Interface Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
Network interface (video recorder) 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Frame rate(video recorder) Main stream: 5 MP@12fps; 4 MP@15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Audio output(video recorder) 1-ch, RCA (Linear, 1 KΩ)
eSATA (optional) Support
Alarm in/out 16/4
Working temperature (video recorder) -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity (video recorder) 10% to 90%
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Video compression(DVR) H.265+/H.265/H.264+/H.264
Analog video input(DVR) 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
Audio compression(DVR) G.711u
Audio input(DVR) 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video bit rate(DVR) 32 Kbps to 10 Mbps
Audio bit rate(DVR) 64 Kbps
Dual stream(DVR) Support
