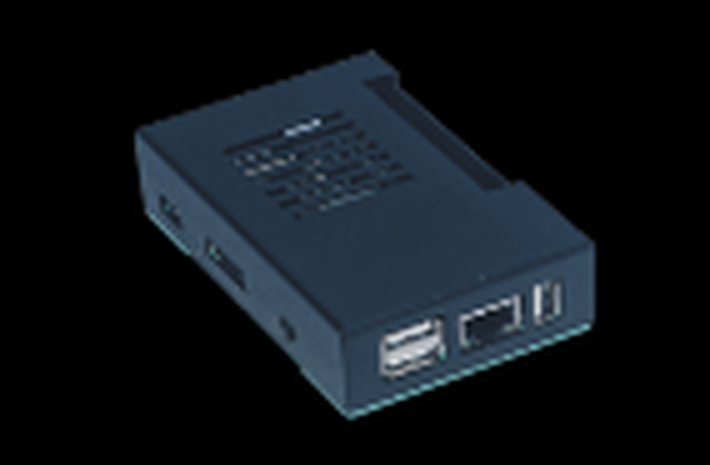

Cloud Gateway V1 — Plug & Play Camera-to-Cloud Bridge (up to 40 Cameras)

Compact plug-and-play gateway that securely bridges your on-site cameras to the cloud. Add it to the network and it auto-discovers ONVIF cameras and sensors, then streams video to the cloud through a secure outbound encrypted tunnel (HTTPS 443, AES-256) — no port forwarding, no public IP, no firewall changes. Supports up to 40 ONVIF cameras depending on stream quality, with 25 programmable I/O pins, webhook automation, camera status alerts, OTA firmware updates, and a built-in web UI.

• Capacity: up to 40 ONVIF-compliant cameras*
• Connectivity: 10/100 Ethernet, 2× USB 2.0, 1× USB OTG, HDMI, 3.5 mm audio
• Enclosure: industrial-grade metal, fanless
• Power: external AC, 2.5–4 W consumption
• I/O: programmable IO connector — trigger lights, sirens, doors from video events
• Dimensions: 95 × 60 × 35 mm
• Operating: -10°C to 50°C, 5–70% RH non-condensing

*Capacity depends on resolution, frame rate, bitrate, analytics workload, and network conditions. Optional — cameras with plug & play support can connect to the cloud directly; the gateway simplifies bulk deployments and one-power-supply cabling via a PoE switch.
