DW Spectrum Server for 1–32 Cameras — 2-Bay Compact, Windows 11 Pro
DW Spectrum Server for 1–32 Cameras — 2-Bay Compact, Windows 11 Pro
All prices are subject to change without notice.
Available in stock
Compact, whisper-quiet DW Spectrum® IPVMS recording server for 1–32 cameras. Ships with Windows 11 Pro (genuine, activated) and the DW Spectrum media server installed and updated — the perfect fit for homes, storefronts, offices, and small multi-site deployments.
- 8-core / 16-thread AMD Ryzen™ 7 workstation processor, up to 4.5 GHz
- 16 GB DDR4-3200 installed · 2 tool-free bays up to 44 TB (46 TB total with NVMe)
- Dual 2.5 GbE · triple-display output (HDMI + DP 4K@144Hz + USB-C)
- Dual cooling system — CPU fan + dedicated drive-bay fan
- Windows 11 Pro + DW Spectrum installed, activated, burned in 24 hours
Official Specifications
| Processor & Graphics | |
|---|---|
| Processor | AMD Ryzen™ 7 5825U — 8 cores / 16 threads |
| Clock Speed | 2.0 GHz base · up to 4.5 GHz max boost |
| Cache | 512 KB L1 · 4 MB L2 · 16 MB L3 |
| PCI Express | PCIe® 3.0 |
| Graphics | AMD Radeon™ Graphics @ 2000 MHz, up to 2 GB graphics memory — hardware-accelerated multi-stream decode |
| Memory | |
| Installed | 16 GB DDR4-3200 (dual channel SODIMM) |
| Slots / Maximum | 2 × DDR4-3200 SODIMM — expandable to 64 GB |
| Storage | |
| System Drive | 256 GB M.2 2280 NVMe SSD (PCIe Gen3 ×4) — dedicated OS/software drive |
| Drive Bays | 2 × 2.5"/3.5" SATA — up to 22 TB per bay (44 TB max) |
| M.2 Slots | 2 × M.2 2280 NVMe PCIe 3.0 — one free for expansion (up to 46 TB total storage) |

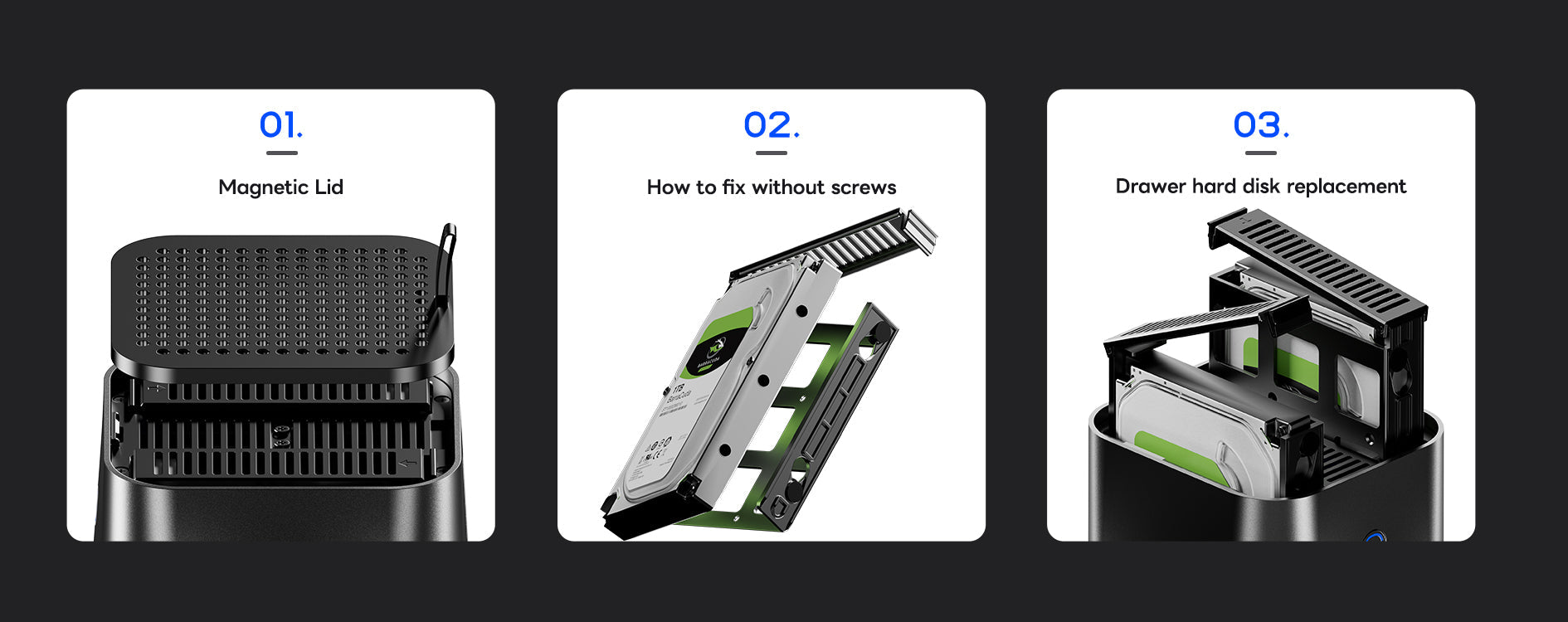

| Drive Installation | Tool-free — magnetic lid, no screws, drawer-style disk replacement |
| Network | |
| Ethernet | 2 × 2.5 GbE LAN |

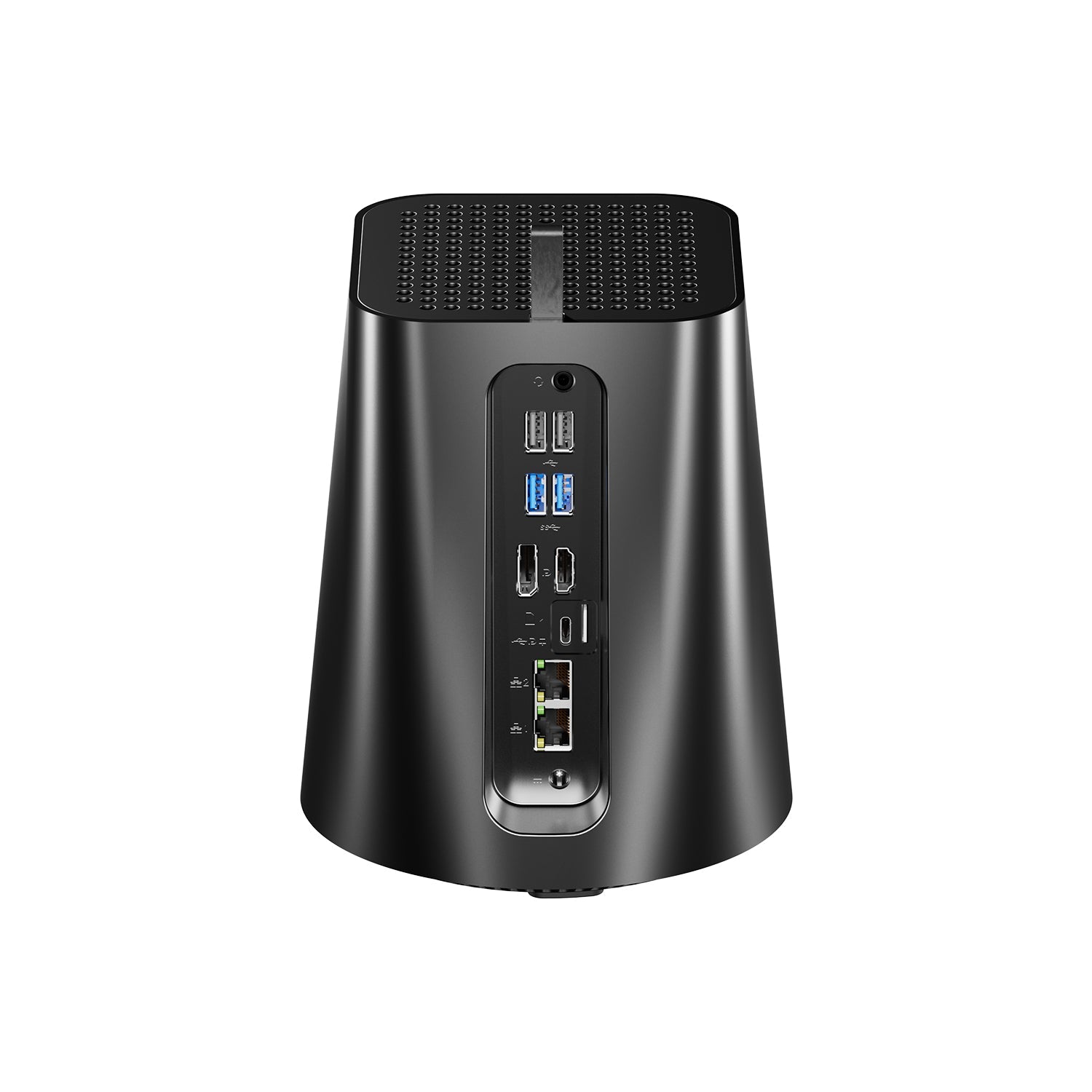

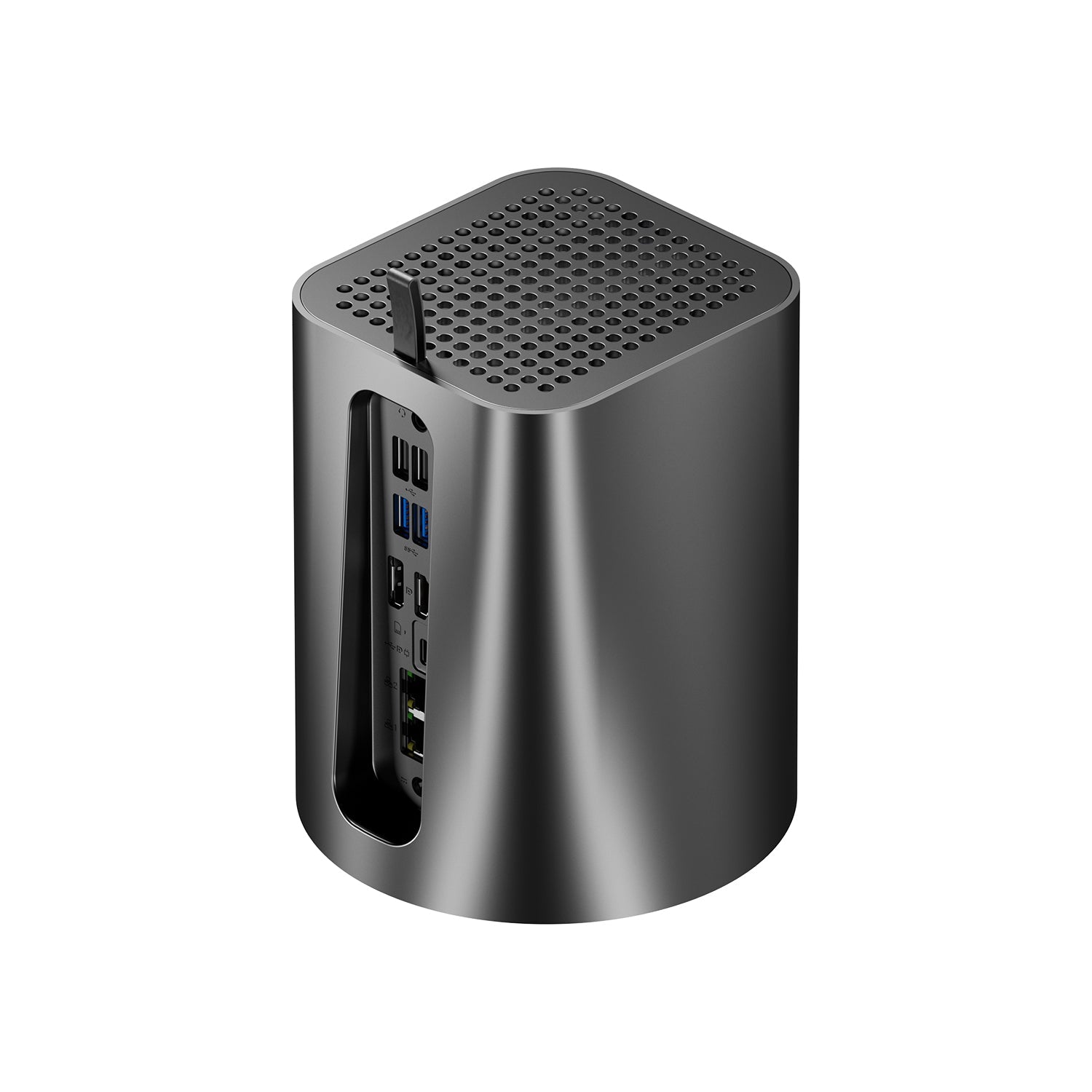

| Interfaces | |
| USB | 2 × USB 3.2 Gen 2 + additional USB ports |
| Video Output | HDMI × 1 · DisplayPort 1.4 (4K@144Hz) × 1 · USB-C — triple-display capable |
| Audio | 3.5 mm audio jack |
| Expansion | MicroSD card slot |
| Power Input | 19V / 5.12A (90–100 W) via USB-C adapter |
| Physical | |
| Cooling | Dual cooling system — CPU fan + 9015 drive-bay fan |
| Dimensions | 16.2 × 16.2 × 19.8 cm |
| Weight | Approx. 2.2 lb (1 kg) before drives |
| In the Box | Server · HD cable · power supply · user manual · setup guide |
| Software — Installed & Activated | |
| Operating System | Windows 11 Pro — genuine license, activated and fully updated |
| VMS | DW Spectrum® IPVMS media server — current release installed, ready for camera discovery |
| Clients | Free DW Spectrum desktop clients (Windows/macOS), mobile apps (iOS/Android), and web client |
| Camera Compatibility | ONVIF, RTSP & HTTP IP cameras — mix any brands, including our OTK and Uniview lines |
| Quality Control | Assembled, 24-hour burn-in, and tested with DW Spectrum before shipping |
| Recording Capacity | Sized for up to 32 channels — one perpetual DW Spectrum license per channel (add below) |
Build Your System — Add-Ons
1. Surveillance drives. Ships diskless for video. Bundle WD Purple™ drives and we'll install, format, and configure them before shipping — or use your own 3.5" SATA drives.
2. DW Spectrum channel licenses. One perpetual license per camera — lifetime upgrades, no renewals:
Sign in to see dealer pricing in your cart.
Why This Machine Is Built for DW Spectrum
- Workstation-class CPU, not an NVR chip. The same 8-core/16-thread Ryzen™ 7 5825U as our 64-channel server — full 32-channel recording plus smooth playback and fast forensic search simultaneously.
- Hardware video decode. Radeon™ graphics at 2000 MHz offloads H.265, so a local monitor wall never touches recording performance.
- Dedicated system drive. Windows and DW Spectrum live on their own NVMe SSD — video writes to separate surveillance drives, eliminating the single-disk bottleneck of cheap NVRs.
- Dual 2.5 GbE. One port for the camera VLAN, one for the office network — 32 cameras with bandwidth to spare.

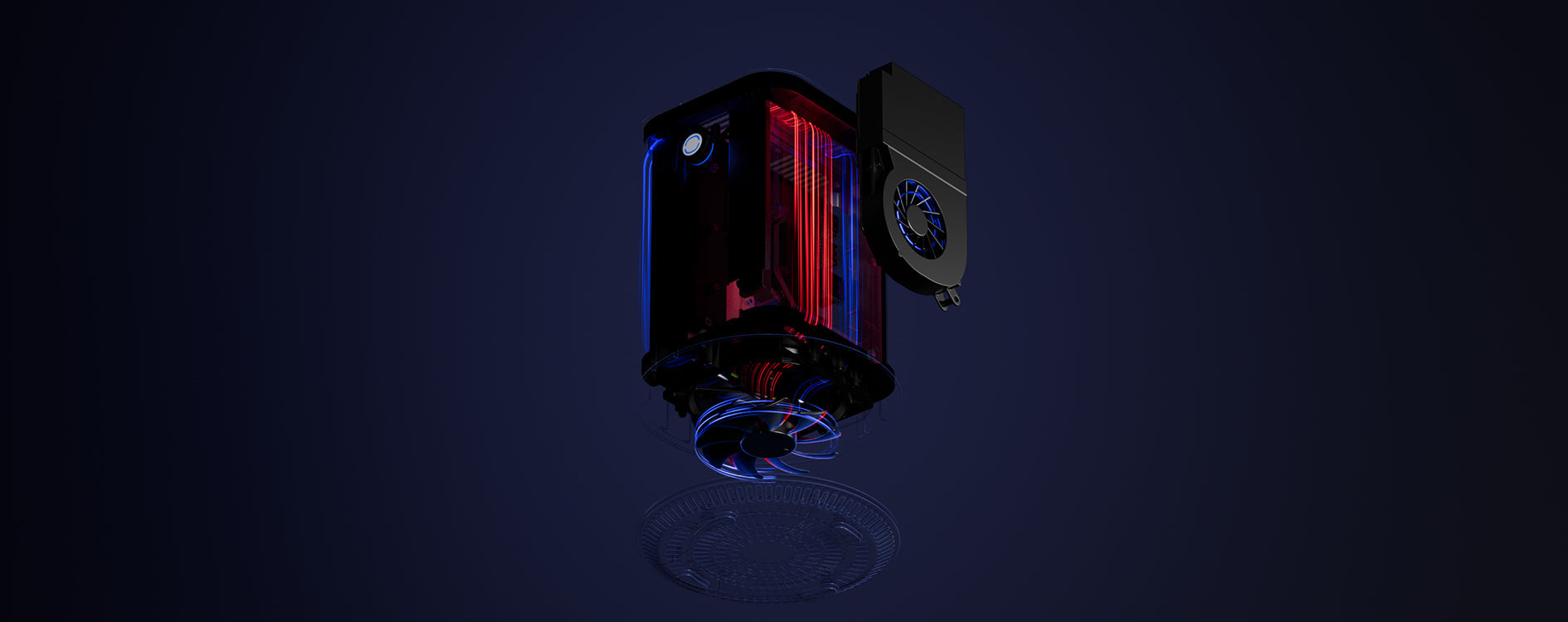

- Dual cooling, whisper-quiet. A CPU fan plus a dedicated drive-bay fan keep 24/7 recording cool in a case that disappears on a shelf.
- Grows with the job. RAM to 64 GB, a free NVMe slot, tool-free bays to 44 TB — and if you outgrow 32 cameras, licenses transfer to a bigger server.
How Licensing Works — 3 Steps
- Count your cameras. Each camera you record uses one channel license — live viewing is always free.
- Add licenses to this order with the picker above (or buy more licenses any time later — new keys merge into the same system as you grow).
- Activate in one click. Your license keys arrive by email; paste them into DW Spectrum's System Administration → Licenses tab and you're recording. We pre-activate keys purchased with a server on request.
Licenses are perpetual with lifetime upgrades — no renewals, no subscriptions, ever.
Cameras That Pair With This Server
Every Ironpixel IP camera we stock connects to DW Spectrum over ONVIF — plug them into your PoE switch, the server auto-discovers them, and each camera uses one channel license. Any other ONVIF/RTSP camera brand works too (up to 32 channels).
Complete the System
- OTK IP cameras and Uniview cameras — ONVIF compatible
- Need more than 32 cameras? Step up to the 64-Channel Expandable Server
- Cloud recording — off-site backup for critical cameras
Custom builds (32–64 GB RAM, larger system drive): call/text 917-977-1277.
