64-Channel DW Spectrum Server — 4-Bay, Windows 11 Pro, Pre-Configured
64-Channel DW Spectrum Server — 4-Bay, Windows 11 Pro, Pre-Configured
All prices are subject to change without notice.
Available in stock

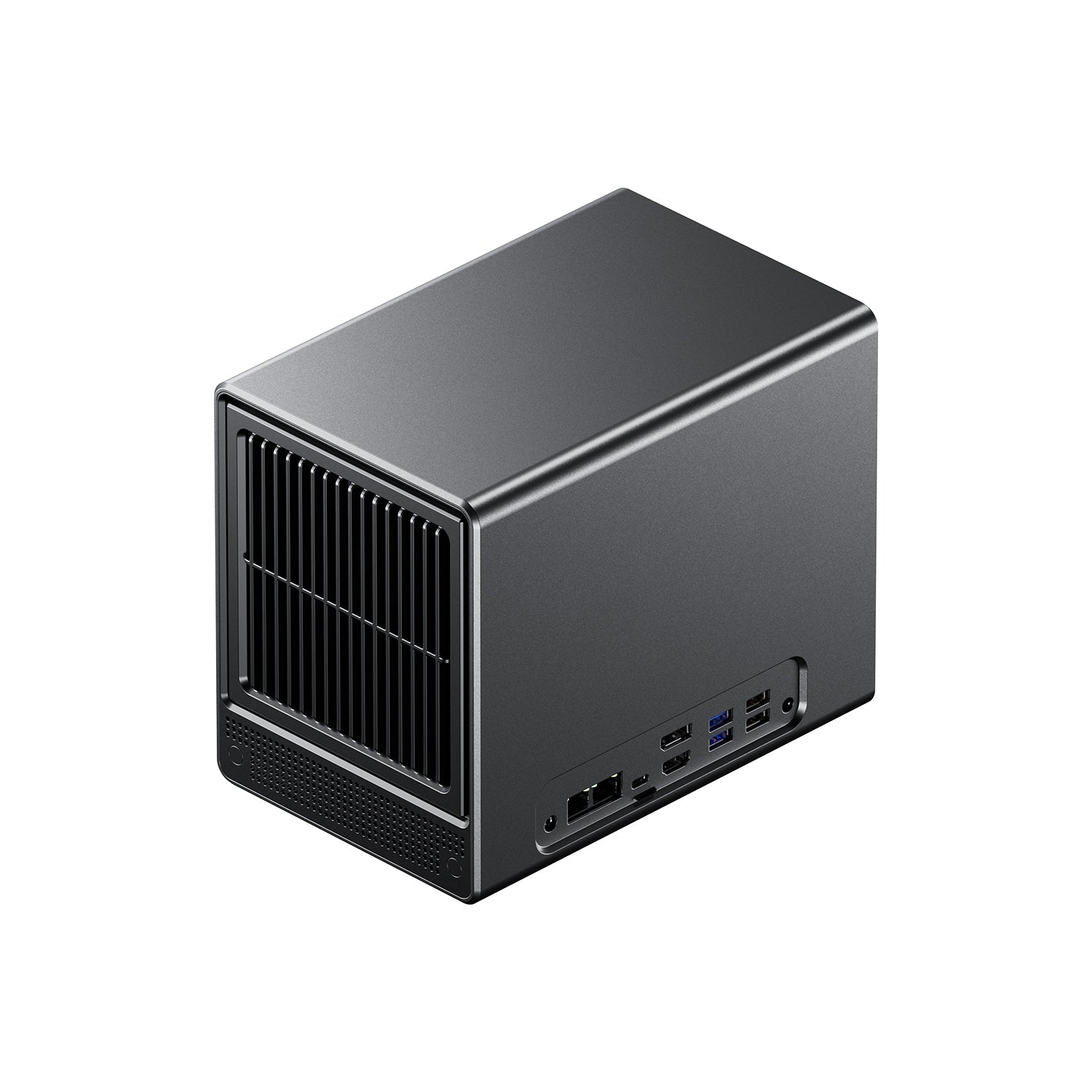

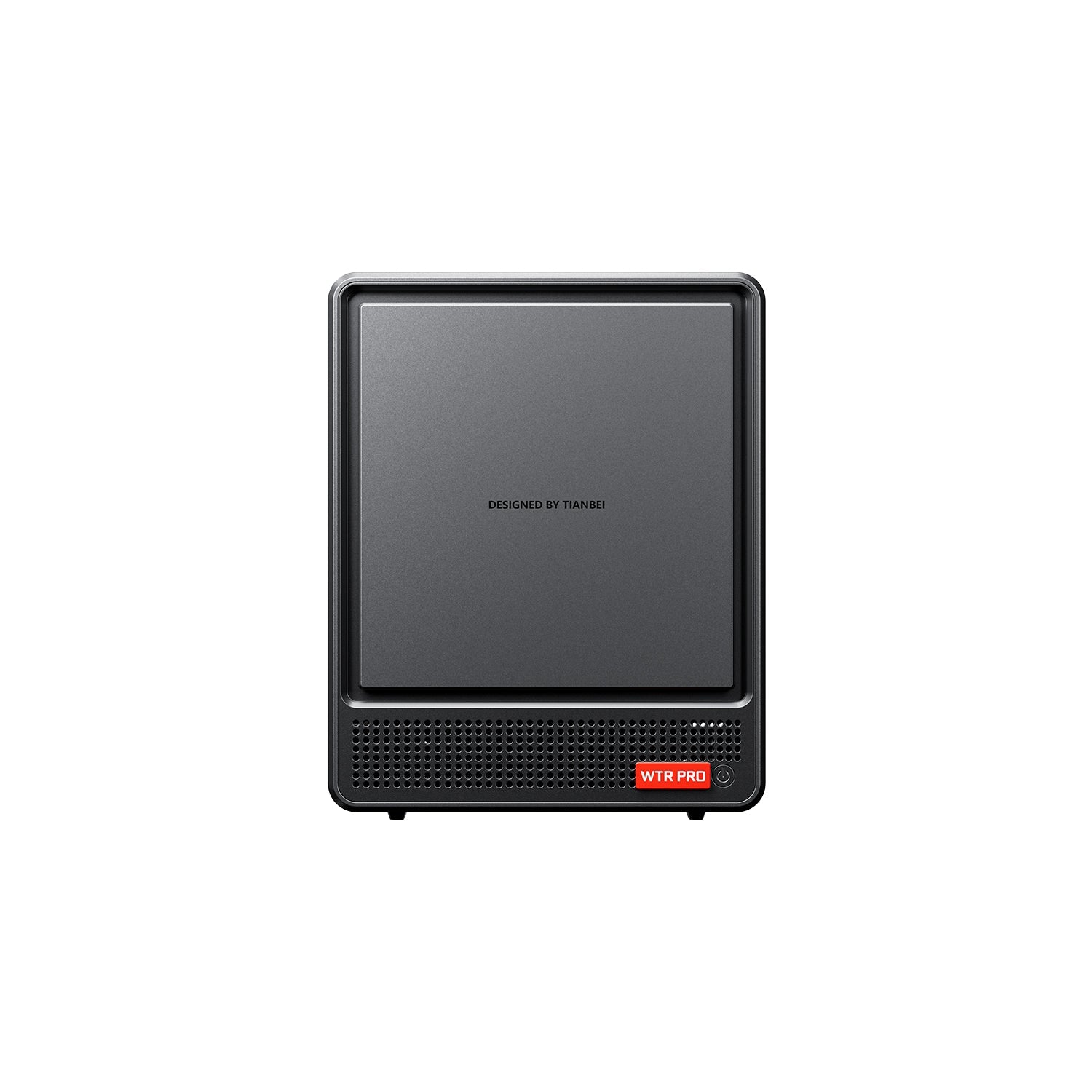

Pre-built, pre-configured DW Spectrum® IPVMS recording server supporting up to 64 IP channels. Ships with Windows 11 Pro (genuine, activated) and the DW Spectrum media server installed and updated — connect it to your network, add channel licenses, and it's recording the same day.
- 8-core / 16-thread AMD Ryzen™ 7 workstation processor, up to 4.5 GHz
- 32 GB DDR4-3200 installed · 4 drive bays up to 96 TB · second NVMe slot free
- Dual 2.5 GbE — bondable into one 5 Gbps logical link with load balancing
- Pass-through airflow with large 12 cm fan — quiet 24/7 full-load recording
- Windows 11 Pro + DW Spectrum installed, activated, burned in 24 hours
Official Specifications
| Processor & Graphics | |
|---|---|
| Processor | AMD Ryzen™ 7 5825U — 8 cores / 16 threads |
| Clock Speed | 2.0 GHz base · up to 4.5 GHz max boost |
| Cache | 512 KB L1 · 4 MB L2 · 16 MB L3 |
| PCI Express | PCIe® 3.0 |
| Graphics | AMD Radeon™ Graphics @ 2000 MHz, up to 2 GB graphics memory — hardware-accelerated multi-stream decode |
| Memory | |
| Installed | 32 GB DDR4-3200 (2 × 16 GB SODIMM, dual channel) |
| Slots / Maximum | 2 × DDR4-3200 SODIMM — expandable to 64 GB |
| Storage | |
| System Drive | 256 GB M.2 2280 NVMe SSD (PCIe Gen3 ×4) — dedicated OS/software drive |

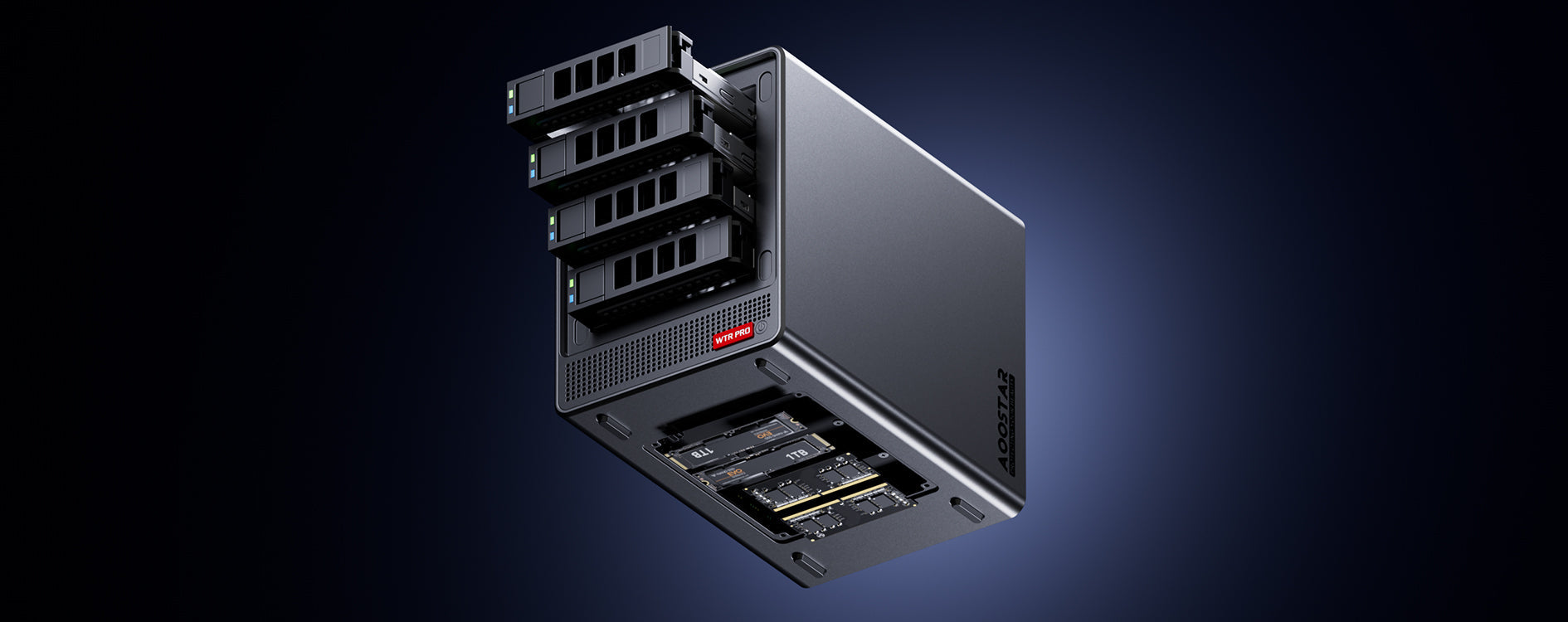

| Drive Bays | 4 × 2.5"/3.5" SATA — up to 24 TB per bay (96 TB max) |
| M.2 Slots | 2 × M.2 2280 NVMe PCIe 3.0, up to 8 TB each — one free for expansion |

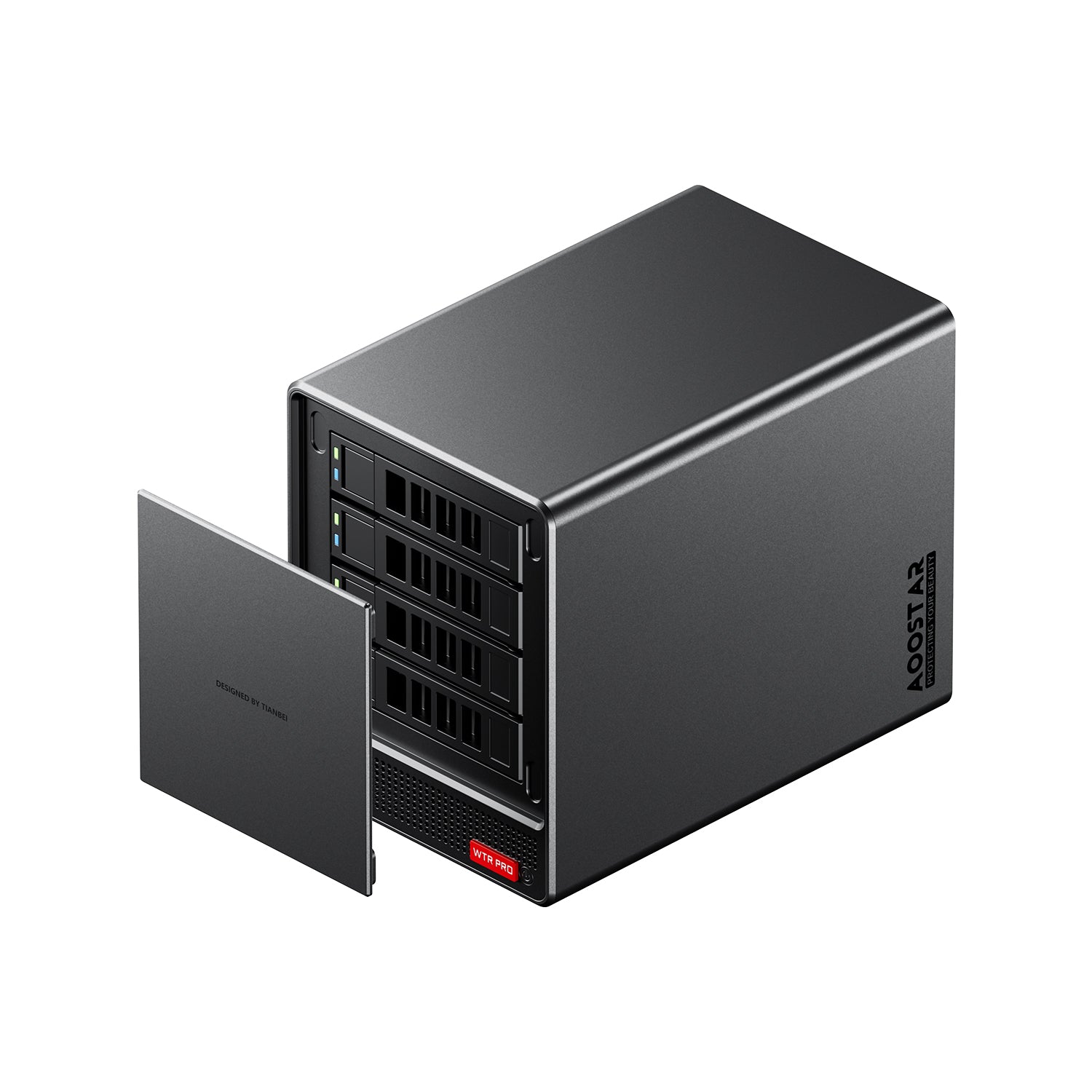

| Drive Installation | Tray-based, tool-free |
| Network | |

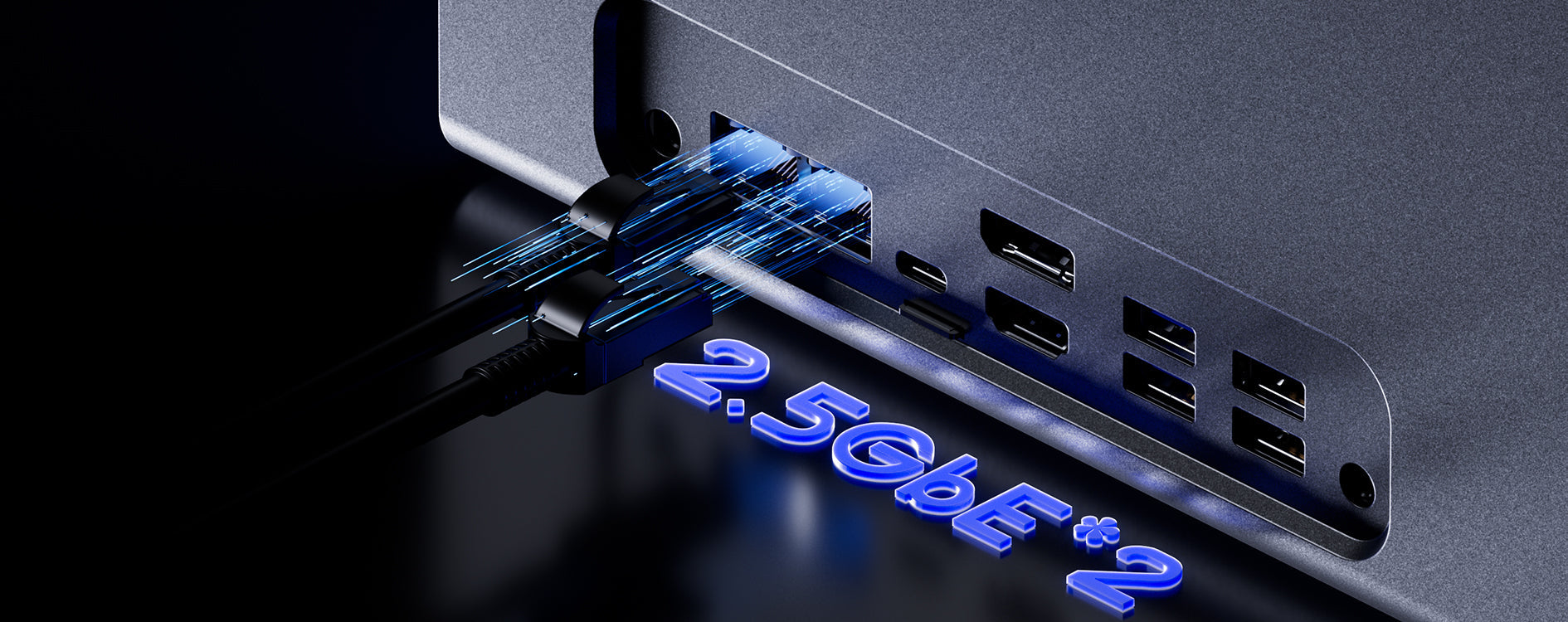

| Ethernet | 2 × 2.5 GbE LAN |
| Port Bonding | Merge both ports into one logical interface — up to 5 Gbps (~625 MB/s) with load balancing |

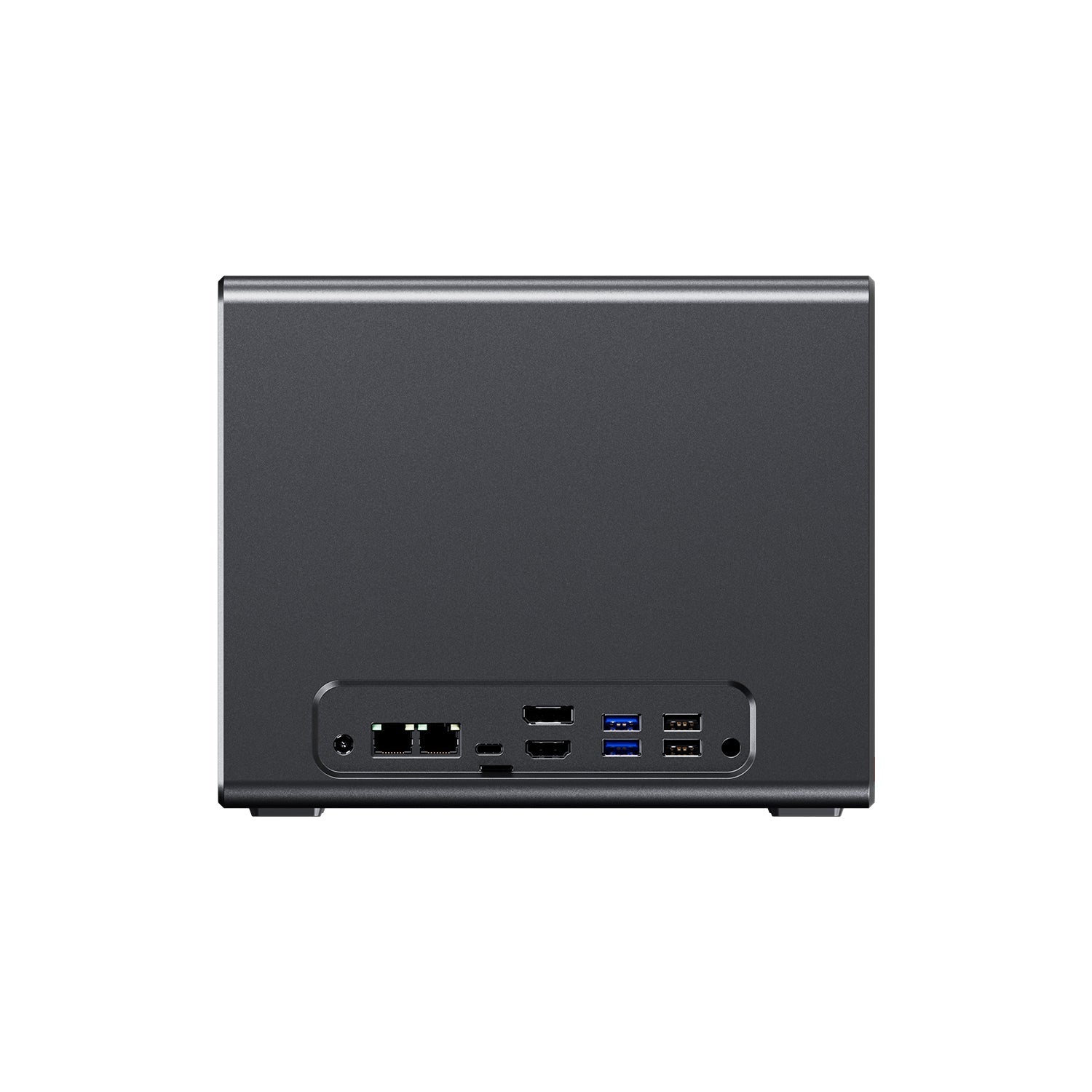

| Interfaces | |
| USB | 2 × USB 3.0 · 2 × USB 2.0 |
| Video Output | HDMI 2.1 (4K) × 1 · DisplayPort 1.4 (4K@144Hz) × 1 |
| Audio | 3.5 mm audio jack |
| Expansion | MicroSD card slot |
| Power Input | DC |
| Physical | |

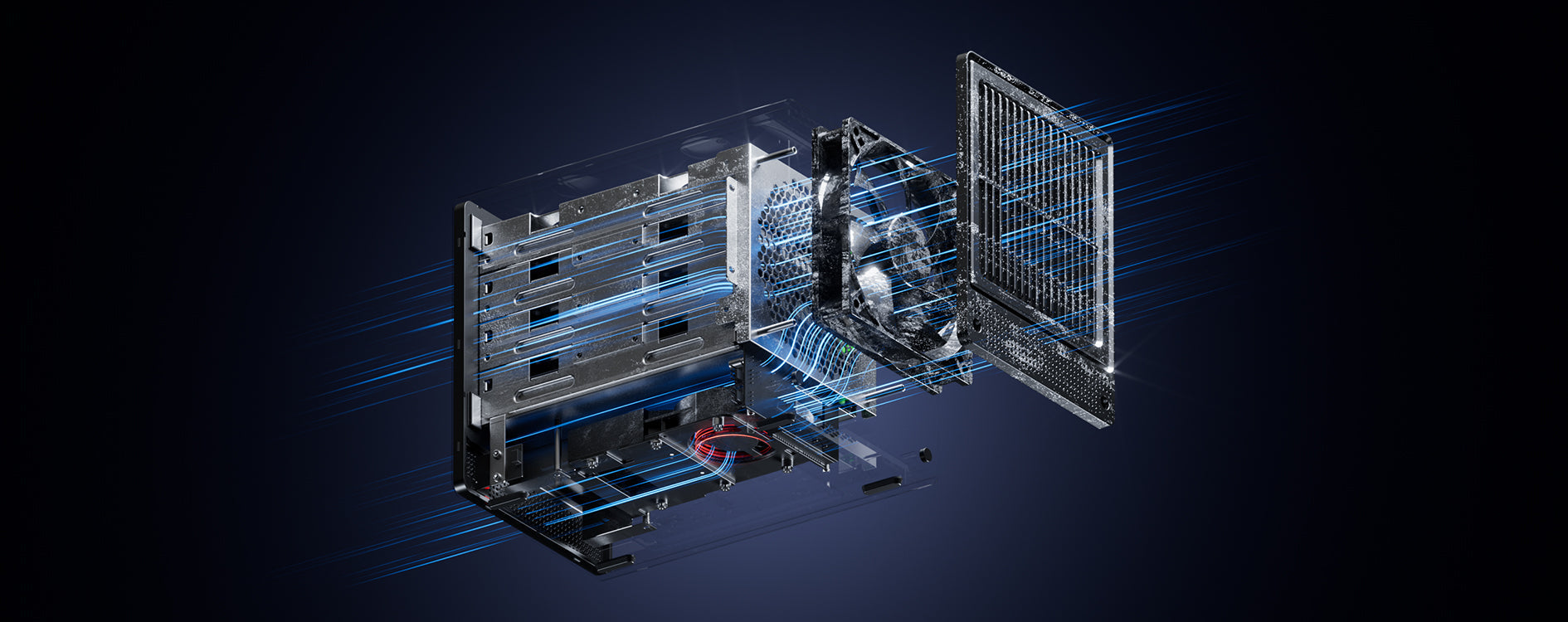

| Cooling | Pass-through construction + large 12 cm cooling fan |
| Dimensions | 22.8 × 15 × 18.5 cm |
| Weight | Approx. 11 lb (5 kg) before drives |
| In the Box | Server · HD cable · power supply · user manual · setup guide |
| Software — Installed & Activated | |
| Operating System | Windows 11 Pro — genuine license, activated and fully updated |
| VMS | DW Spectrum® IPVMS media server — current release installed, ready for camera discovery |
| Clients | Free DW Spectrum desktop clients (Windows/macOS), mobile apps (iOS/Android), and web client |
| Camera Compatibility | ONVIF, RTSP & HTTP IP cameras — mix any brands, including our OTK and Uniview lines |
| Quality Control | Assembled, 24-hour burn-in, and tested with DW Spectrum before shipping |
| Recording Capacity | Up to 64 channels — one perpetual DW Spectrum license per channel (add below) |
Build Your System — Add-Ons
1. Surveillance drives. Ships diskless for video. Bundle WD Purple™ drives and we'll install, format, and configure them before shipping — or use your own 3.5" SATA drives.
2. DW Spectrum channel licenses. One perpetual license per camera — lifetime upgrades, no renewals:
Sign in to see dealer pricing in your cart.
Why This Machine Is Built for DW Spectrum
- Workstation-class CPU, not an NVR chip. The 8-core/16-thread Ryzen™ 7 5825U outmuscles the embedded processors in typical NVR appliances — full 64-channel recording plus smooth multi-client playback and fast forensic search at the same time.
- Hardware video decode. Radeon™ graphics at 2000 MHz offloads H.265 decoding, so a local 4K monitoring wall doesn't touch recording performance.
- Dedicated system drive. DW Spectrum and Windows live on their own NVMe SSD — video writes to separate surveillance drives, eliminating the single-disk bottleneck cheap NVRs suffer.
- Serious network headroom. Dual 2.5 GbE bonds into a 5 Gbps pipe — 64 cameras at 4K barely dent it, with a port to spare for the office LAN.
- 24/7 thermal design. Pass-through airflow and a large 12 cm fan keep four drives and the CPU cool at continuous full load — quietly, in a case smaller than a shoebox.
- Grows with the job. RAM to 64 GB, a free NVMe slot, and 96 TB of bay capacity — add cameras and retention for years without replacing the server.
How Licensing Works — 3 Steps
- Count your cameras. Each camera you record uses one channel license — live viewing is always free.
- Add licenses to this order with the picker above (or buy more licenses any time later — new keys merge into the same system as you grow).
- Activate in one click. Your license keys arrive by email; paste them into DW Spectrum's System Administration → Licenses tab and you're recording. We pre-activate keys purchased with a server on request.
Licenses are perpetual with lifetime upgrades — no renewals, no subscriptions, ever.
Cameras That Pair With This Server
Every Ironpixel IP camera we stock connects to DW Spectrum over ONVIF — plug them into your PoE switch, the server auto-discovers them, and each camera uses one channel license. Any other ONVIF/RTSP camera brand works too (up to 64 channels).
Complete the System
- OTK IP cameras and Uniview cameras — ONVIF compatible
- Smaller job? See the 32-Channel Compact Server
- Cloud recording — off-site backup for critical cameras
Volume and custom builds (64 GB RAM, larger system drive, bigger M.2 video cache): call/text 917-977-1277.
Digital Watchdog® and DW Spectrum® are registered trademarks of Digital Watchdog, Inc. AMD®, Ryzen™ and Radeon™ are trademarks of Advanced Micro Devices, Inc. Windows® is a registered trademark of Microsoft Corporation. WD Purple™ is a trademark of Western Digital Corporation. Names are used for identification only; Security System Depot Inc. is an independent reseller.
