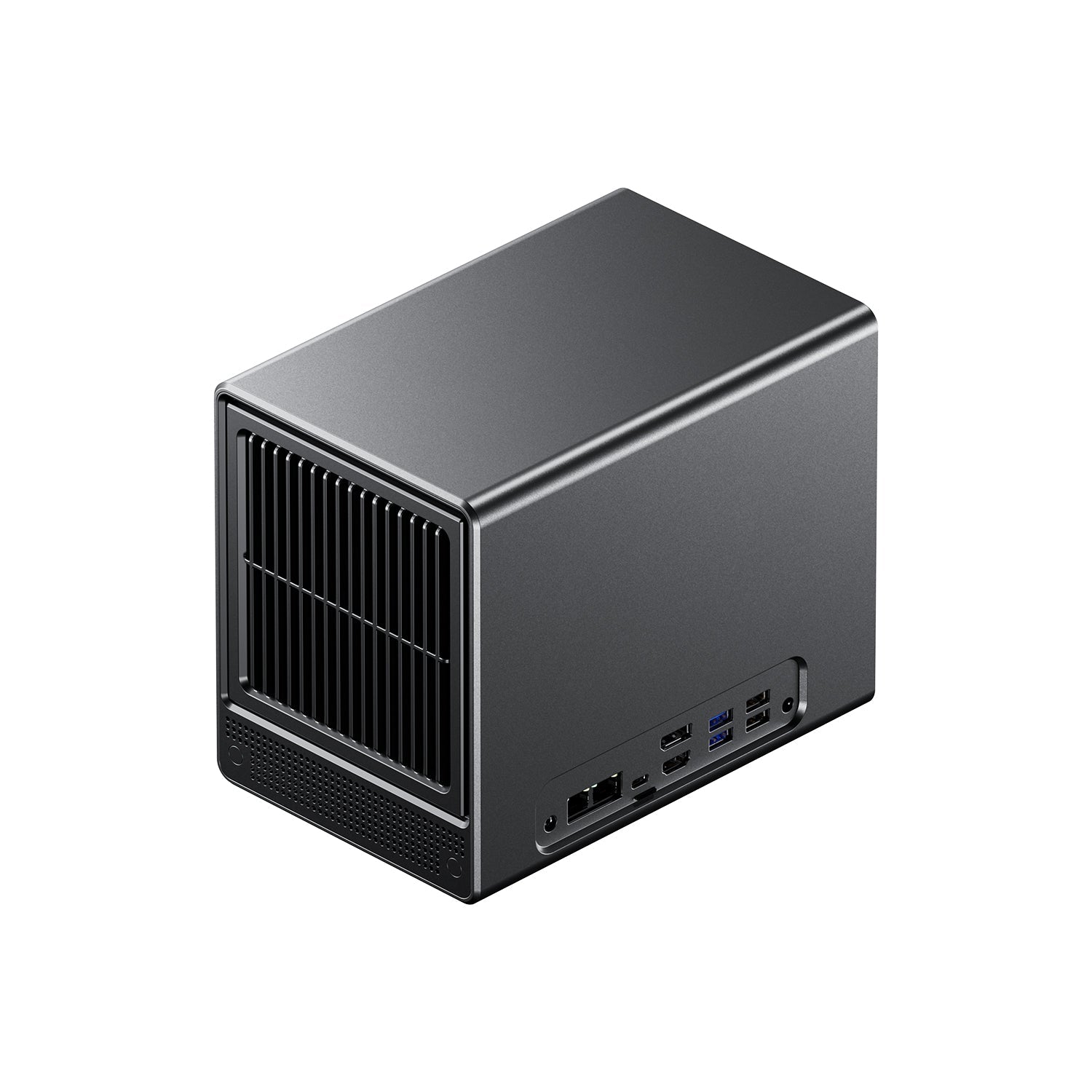

64-Channel Frigate AI NVR Server — 4-Bay, Coral TPU, Home Assistant Ready
64-Channel Frigate AI NVR Server — 4-Bay, Coral TPU, Home Assistant Ready
All prices are subject to change without notice.
Available in stock
Pre-built, pre-configured Frigate AI NVR supporting up to 64 IP channels. Ships with Debian Linux + Docker, the current Frigate release installed and configured, and a Google Coral Edge TPU AI accelerator — connect it to your network and it's detecting and recording the same day, with no channel licenses and no monthly fees, ever.
- 8-core / 16-thread AMD Ryzen™ 7 workstation processor, up to 4.5 GHz
- Google Coral Edge TPU installed — 100+ AI object detections per second, room for a second accelerator
- 32 GB DDR4-3200 installed · 4 drive bays up to 96 TB · second NVMe slot free
- Dual 2.5 GbE — bondable into one 5 Gbps logical link with load balancing
- Pass-through airflow with large 12 cm fan — quiet 24/7 full-load recording
- Optional Home Assistant pre-installed and linked to Frigate — free, burned in 24 hours
Official Specifications
| Processor, Graphics & AI | |
|---|---|
| Processor | AMD Ryzen™ 7 5825U — 8 cores / 16 threads |
| Clock Speed | 2.0 GHz base · up to 4.5 GHz max boost |
| Cache | 512 KB L1 · 4 MB L2 · 16 MB L3 |
| Graphics | AMD Radeon™ Graphics @ 2000 MHz — hardware-accelerated multi-stream H.265/H.264 decode (VAAPI) |
| AI Accelerator | Google Coral Edge TPU — installed and configured; 100+ object detections per second at a couple of watts, expandable with a second accelerator for maximum-density builds |
| Memory | |
| Installed | 32 GB DDR4-3200 (2 × 16 GB SODIMM, dual channel) |
| Slots / Maximum | 2 × DDR4-3200 SODIMM — expandable to 64 GB |
| Storage | |
| System Drive | 256 GB M.2 2280 NVMe SSD (PCIe Gen3 ×4) — dedicated OS/software drive |

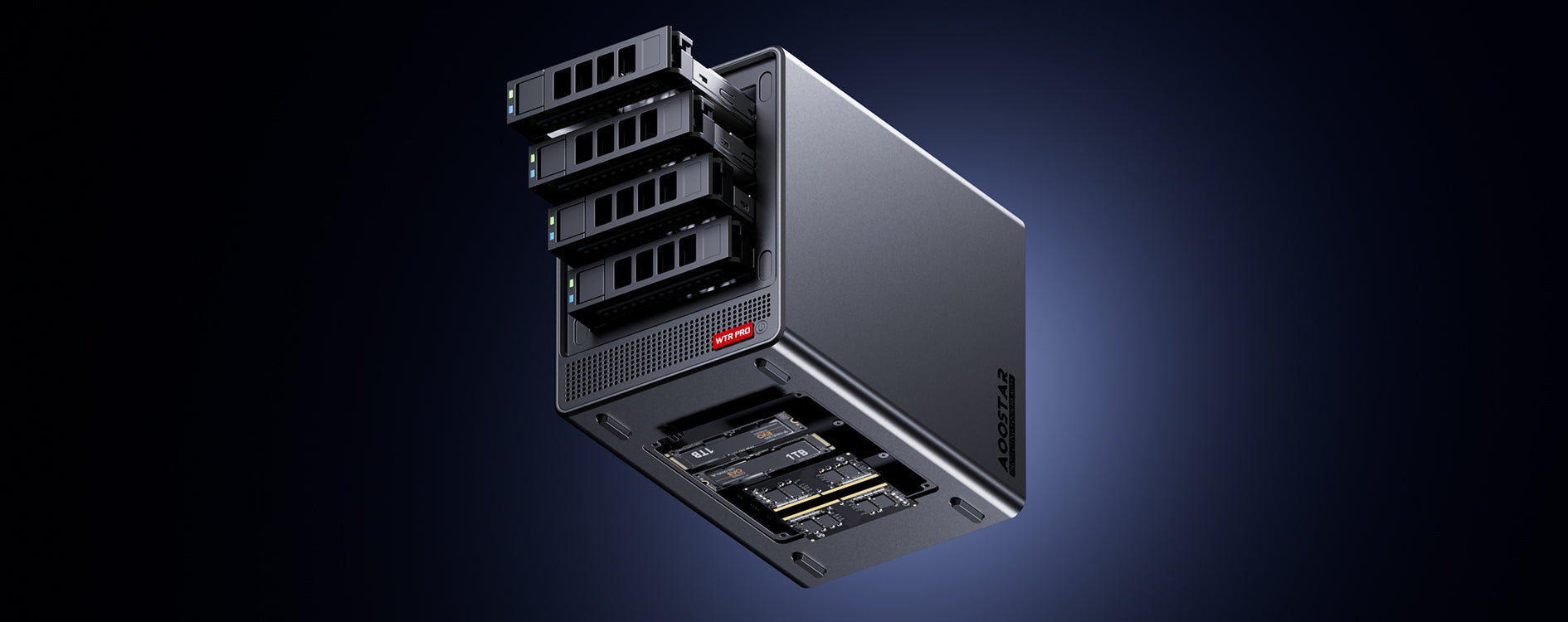

| Drive Bays | 4 × 2.5"/3.5" SATA — up to 24 TB per bay (96 TB max) |
| M.2 Slots | 2 × M.2 2280 NVMe PCIe 3.0, up to 8 TB each — one free for expansion |

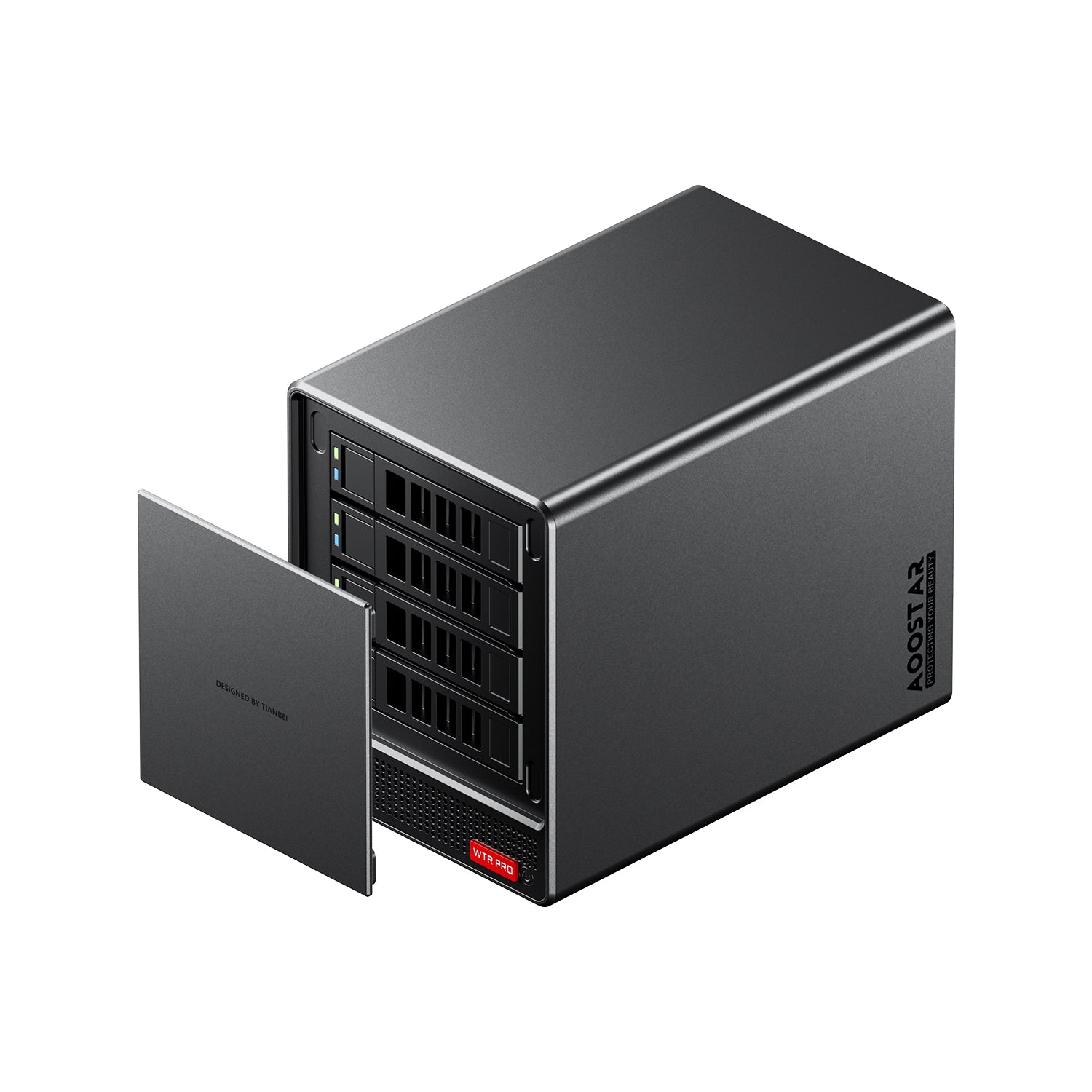

| Drive Installation | Tray-based, tool-free |
| Network | |

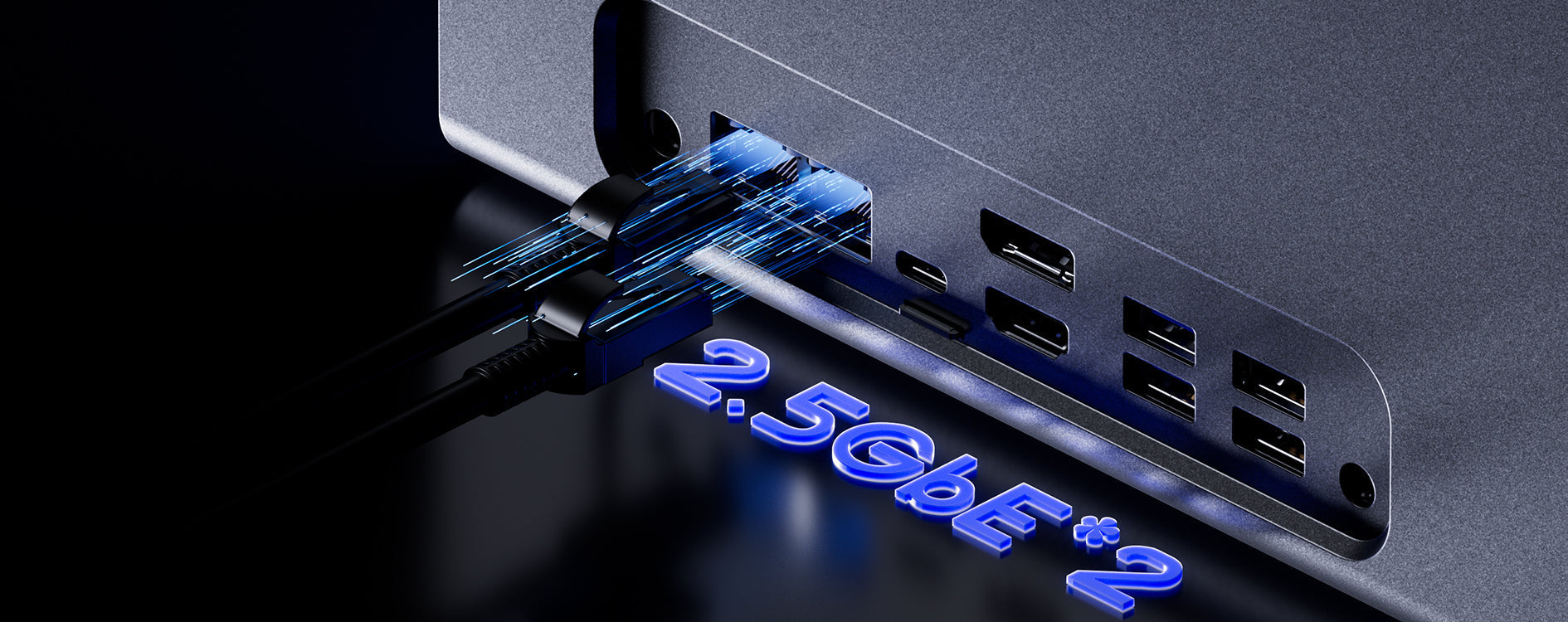

| Ethernet | 2 × 2.5 GbE LAN |
| Port Bonding | Merge both ports into one logical interface — up to 5 Gbps (~625 MB/s) with load balancing |

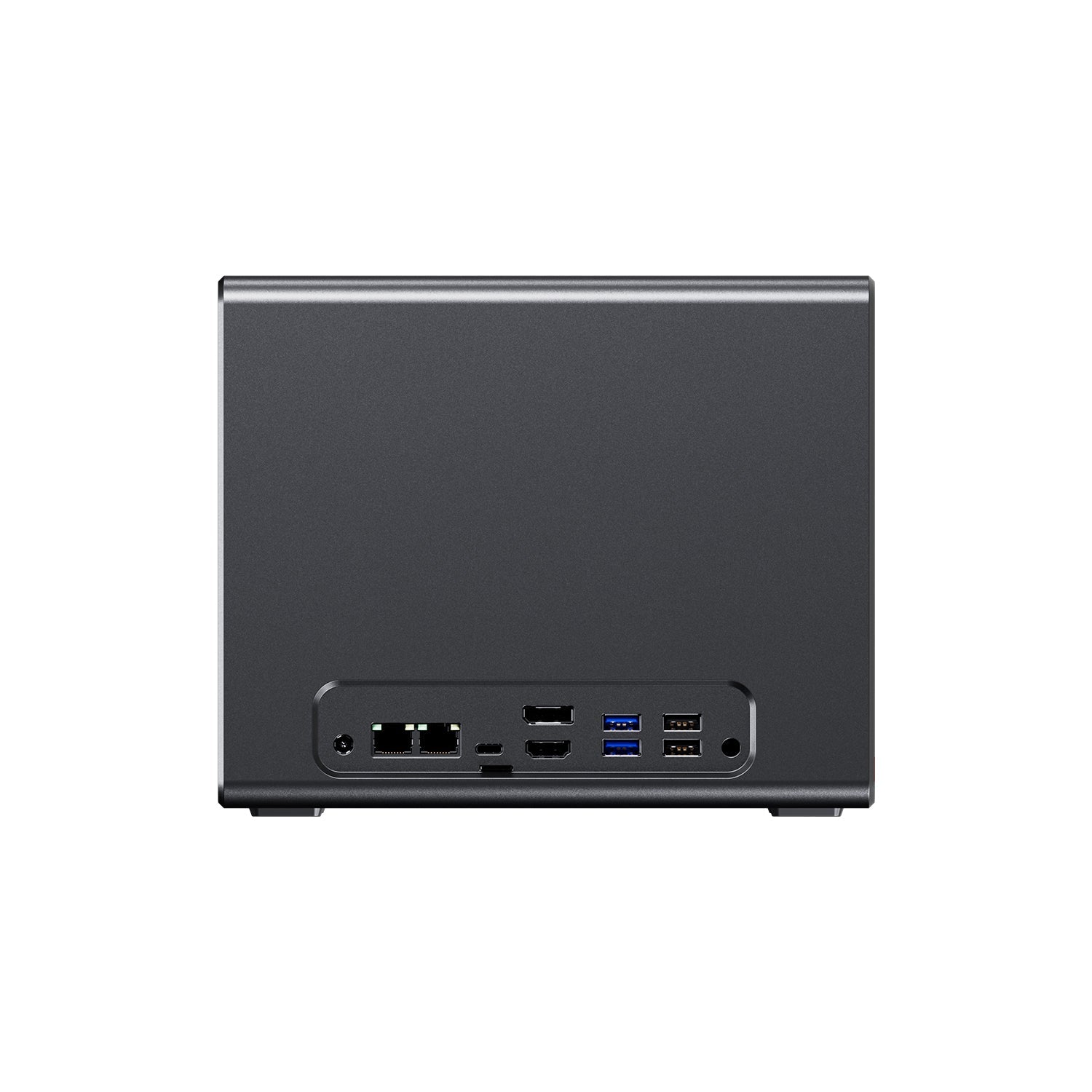

| Interfaces | |
| USB | 2 × USB 3.0 · 2 × USB 2.0 |
| Video Output | HDMI 2.1 (4K) × 1 · DisplayPort 1.4 (4K@144Hz) × 1 |
| Audio | 3.5 mm audio jack |
| Expansion | MicroSD card slot |
| Power Input | DC |
| Physical | |

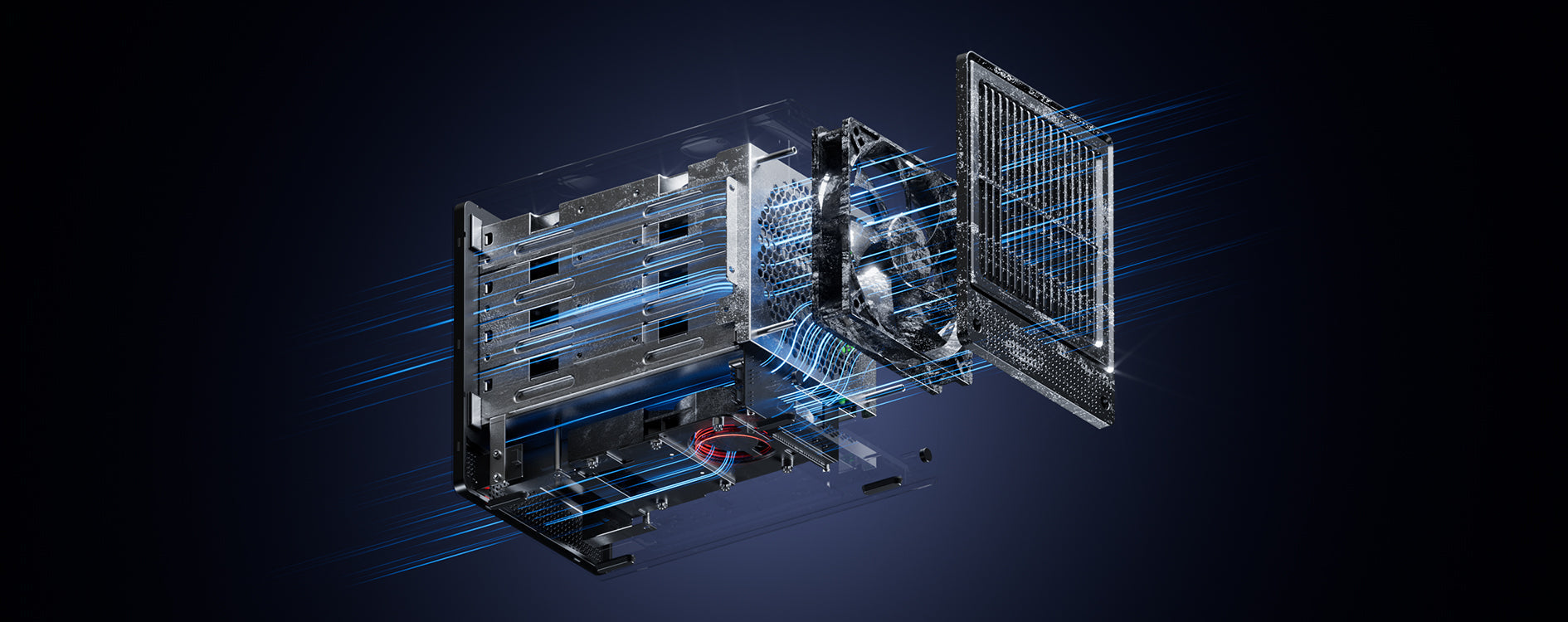

| Cooling | Pass-through construction + large 12 cm cooling fan |
| Dimensions | 22.8 × 15 × 18.5 cm |
| Weight | Approx. 11 lb (5 kg) before drives |
| In the Box | Server · HD cable · power supply · user manual · setup guide |
| Software — Installed & Configured | |
| Operating System | Debian Linux + Docker — stable, updated, and remotely maintainable |
| NVR | Frigate — current stable release, hardware decode and Coral detection pre-configured, ready for your camera streams |
| Smart Home (optional) | Home Assistant pre-installed and linked to Frigate — free, select below |
| Clients | Frigate web UI from any browser · Home Assistant apps (iOS/Android) for live view & rich notifications |
| Camera Compatibility | RTSP & ONVIF IP cameras — mix any brands, including our Redcore, Ironpixel, and OTK lines |
| Quality Control | Assembled, 24-hour burn-in, and tested with Frigate before shipping |
| Recording Capacity | Up to 64 channels — no channel licenses, no subscriptions, ever. Optional Frigate+ custom models available directly from frigate.video ($50/yr) |
Build Your System — Add-Ons
1. Surveillance drives. Ships diskless for video. Bundle WD Purple™ drives and we'll install, format, and configure them before shipping — or use your own 3.5" SATA drives.
2. Home Assistant pre-install — free. We install Home Assistant, connect the Frigate integration, and hand you a working smart-home dashboard out of the box:
Sign in to see dealer pricing in your cart.
Why This Machine Is Built for Frigate
- Workstation-class CPU, not an NVR chip. The 8-core/16-thread Ryzen™ 7 5825U outmuscles the embedded processors in typical NVR appliances — full 64-channel recording plus smooth multi-stream live view and fast clip search at the same time.
- Dedicated AI silicon. The Coral Edge TPU runs Frigate's object detection at 100+ inferences per second while sipping power — the CPU never carries the AI load, and there's room for a second TPU for maximum-density builds.
- Hardware video decode. Radeon™ graphics offloads H.265/H.264 decoding through VAAPI, so dozens of detect streams don't touch recording performance.
- Dedicated system drive. Frigate and Debian live on their own NVMe SSD — video writes to separate surveillance drives, eliminating the single-disk bottleneck cheap NVRs suffer.
- Serious network headroom. Dual 2.5 GbE bonds into a 5 Gbps pipe — 64 cameras at 4K barely dent it, with a port to spare for the office LAN.
- 24/7 thermal design. Pass-through airflow and a large 12 cm fan keep four drives and the CPU cool at continuous full load — quietly, in a case smaller than a shoebox.
- Grows with the job. RAM to 64 GB, a free NVMe slot, and 96 TB of bay capacity — add cameras and retention for years without replacing the server, with zero added license cost.
Up and Running — 3 Steps
- Send us your camera list. Brands, models, and how many — we pre-configure every stream, zone-ready, before the server ships.
- Plug it in. Connect the server to your PoE switch and power it on — cameras connect over RTSP/ONVIF and recording starts immediately.
- Open your browser. The Frigate web UI (and Home Assistant, if you chose the free pre-install) is live on your network — alerts, review, and search from day one.
No license keys to paste, no activations, no renewals — Frigate is free, open source software, and every update is free forever.
Cameras That Pair With This Server
Every Ironpixel IP camera we stock connects to Frigate over RTSP/ONVIF — plug them into your PoE switch, add the streams, and detection starts. Any other RTSP camera brand works too (up to 64 channels).
Complete the System
- OTK IP cameras and Uniview cameras — RTSP/ONVIF compatible
- Smaller job? See the 32-Channel Compact Frigate Server
- New to Frigate? See why local AI beats the cloud →
- Cloud recording — off-site backup for critical cameras
Volume and custom builds (64 GB RAM, dual Coral TPU, larger system drive, bigger M.2 video cache): call/text 917-977-1277.
Frigate is a free, open source (MIT-licensed) project; Frigate and Frigate+ are trademarks of Frigate, LLC. Home Assistant is a trademark of the Open Home Foundation. Google Coral™ is a trademark of Google LLC. AMD®, Ryzen™ and Radeon™ are trademarks of Advanced Micro Devices, Inc. WD Purple™ is a trademark of Western Digital Corporation. Names are used for identification only; Security System Depot Inc. is an independent integrator and is not affiliated with or endorsed by these organizations.
