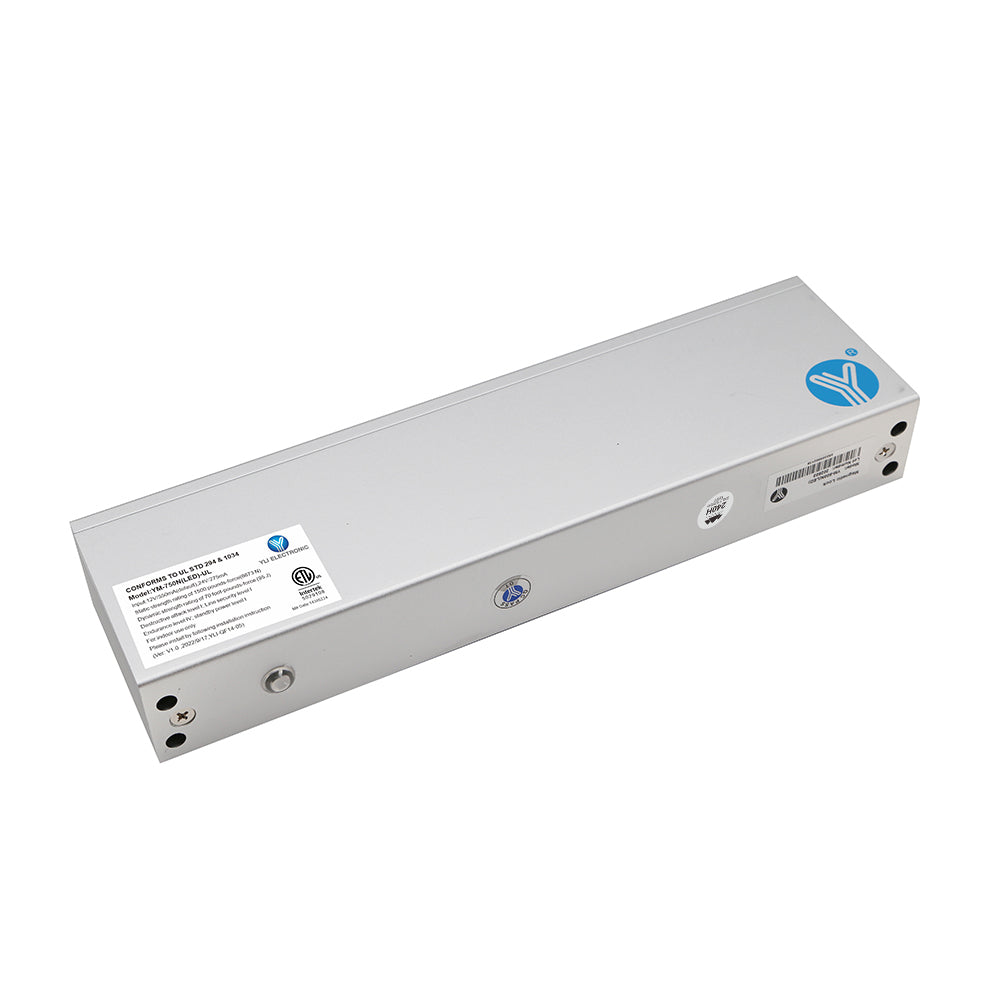

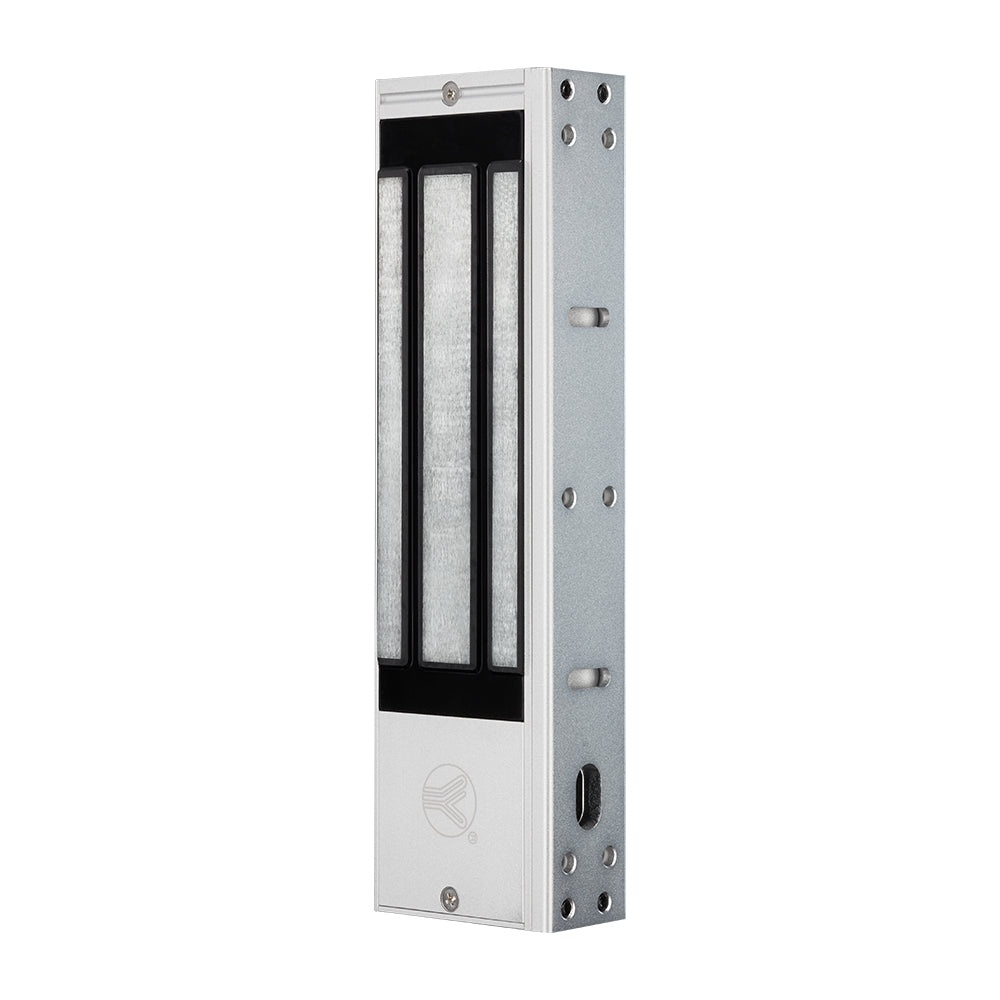

YM-750N(LED)-UL 1500 lb Magnetic Lock with LED & Signal — Single Door, UL Listed

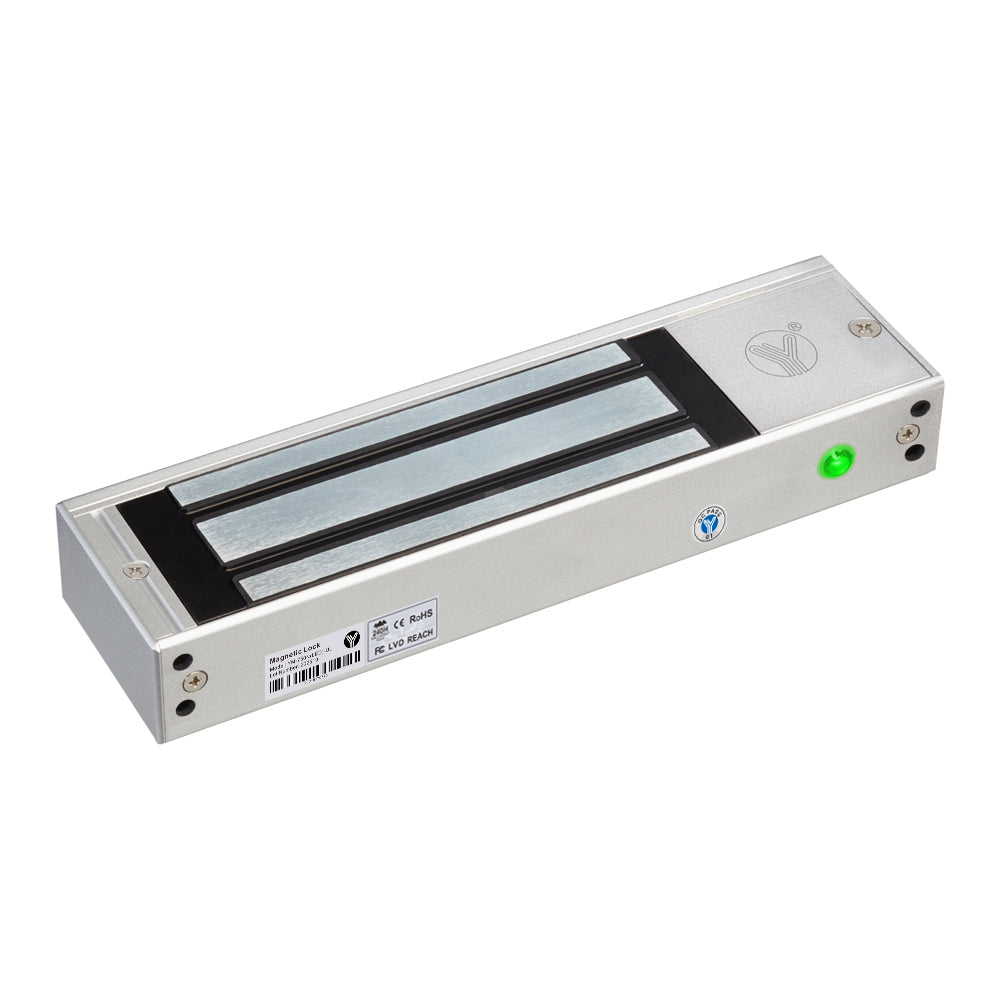

1500 lb (750 kg) single-door electromagnetic lock, certified to UL 294 & UL 1034 and ANSI/BHMA A156.23. A large LED shows lock state at a glance (red = locked, green = unlocked) and NO/NC/COM signal contacts report status to your access control panel. The laser-welded lock core is potted in flame-retardant V-0 resin, and the anodized housing passed a 240-hour salt-spray test — holding force loss under 5% after both salt spray and 1,000,000 cycles.

• Holding force: 750 kg / 1500 lbs ±10% direct pull
• Certifications: UL 294 & UL 1034 · ANSI/BHMA A156.23
• LED / signal: Red locked, green unlocked · NO/NC/COM contacts
• Voltage: DC 12 V (default) / DC 24 V (adjustable)
• Current: 500 mA @ 12 V · 250 mA @ 24 V
• Durability: 1,000,000 cycles · 45 J impact ×5 · releases ≤0.5 s (anti-residual magnetism)
• Environment: -30°C to +66°C · 0–95% RH
• Lock body: 280 × 81.6 × 46 mm
• Armature plate: 190 × 70 × 13 mm
• Suitable doors: Wood, glass, metal, fireproof
• Optional brackets: ABK-750L, ABK-750ZL
• Warranty: 3 years

Fail-safe by design: unlocks instantly on power loss for code-compliant egress.
