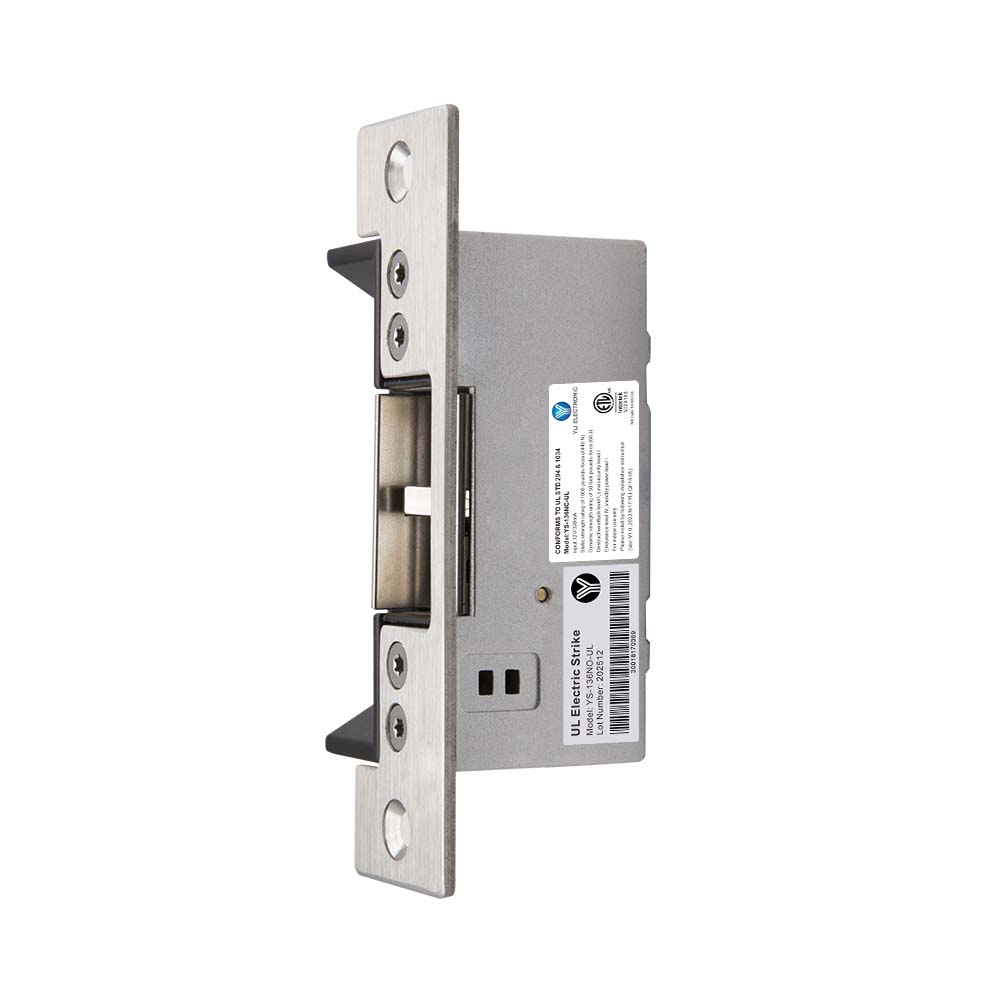

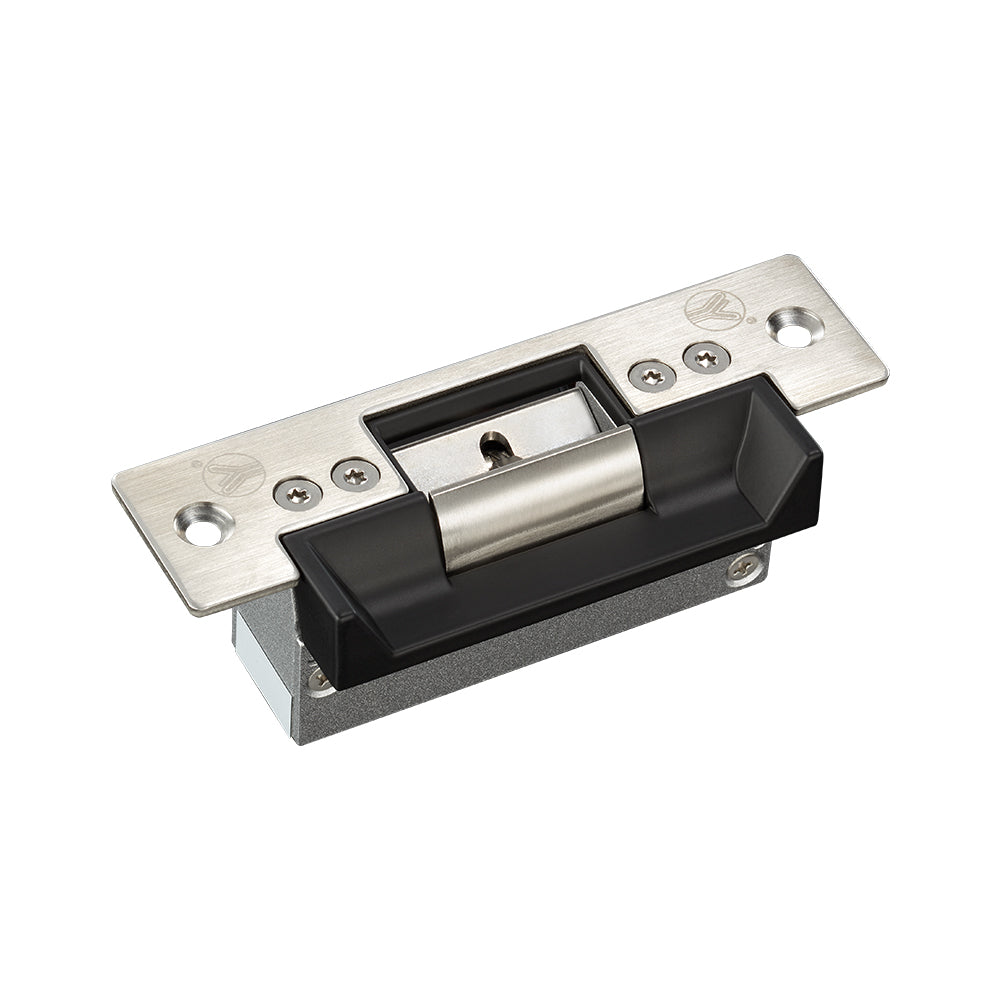

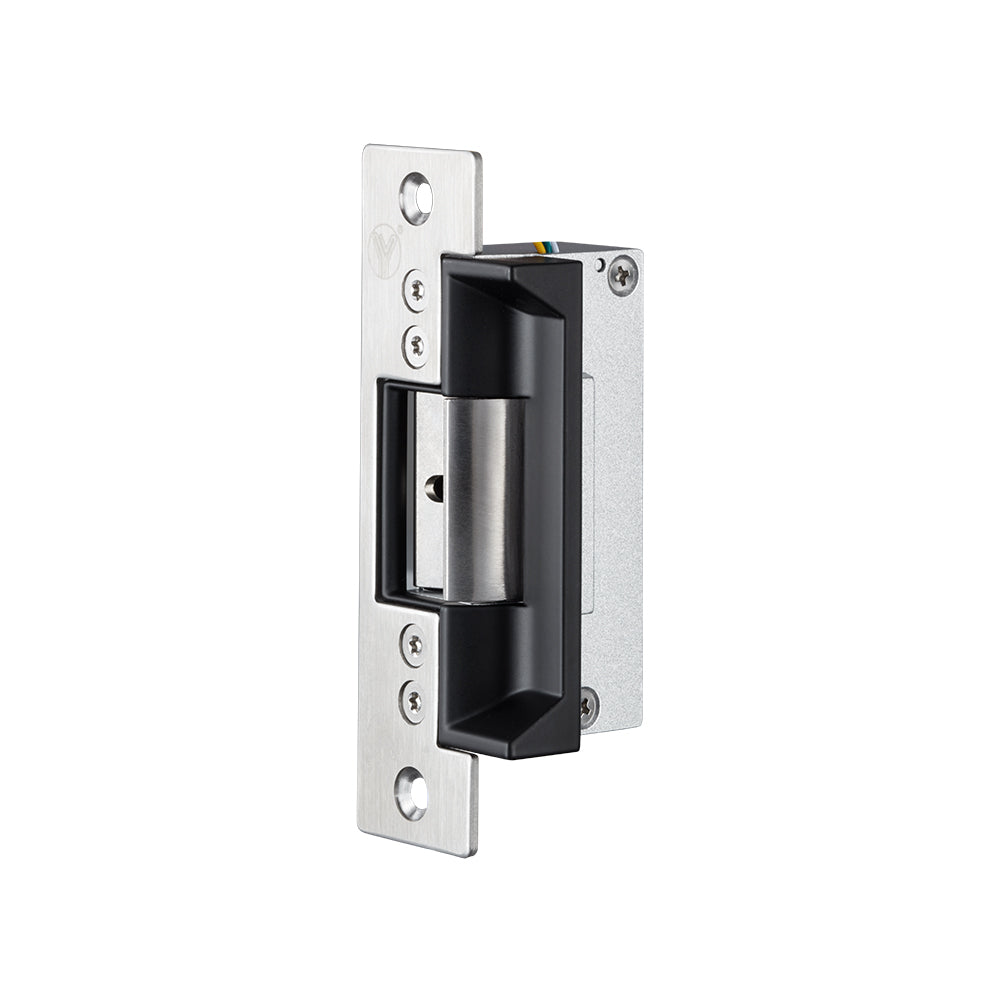

YS-136NC-UL ANSI Heavy Duty Electric Strike — Fail Safe, UL Listed
YS-136NC-UL ANSI Heavy Duty Electric Strike — Fail Safe, UL Listed
Shipping calculated at checkout.
All prices are subject to change without notice.
Available in stock
ANSI-standard heavy duty electric strike with door-status signal output, UL 294 & UL 1034 listed. Designed for ANSI cylindrical locksets on wooden, metal and PVC doors, with electrically controlled release for daily use and manual operation for emergencies. This is the fail-safe model: it releases when power is removed — for fire-egress and life-safety applications.
- Mode: Fail Safe (releases on power loss)
- UL ratings: Static 1,000 lbf (4448 N) · dynamic 50 ft-lbf (68 J) · endurance 250,000 cycles
- Signal output: Door-status dry contacts NO/NC/COM
- Voltage / current: DC 12 V · 320 mA
- Keeper: Stainless steel · painted-steel faceplate
- Lock size: 123 × 43 × 42 mm
- Environment: -20°C to +55°C · 0–95% RH
- Protection: Built-in diode surge absorption
- Suitable doors: Wood, metal, PVC
- Certification: UL 294 & UL 1034
Metal-frame friendly: drill and install directly. 1-year warranty.
