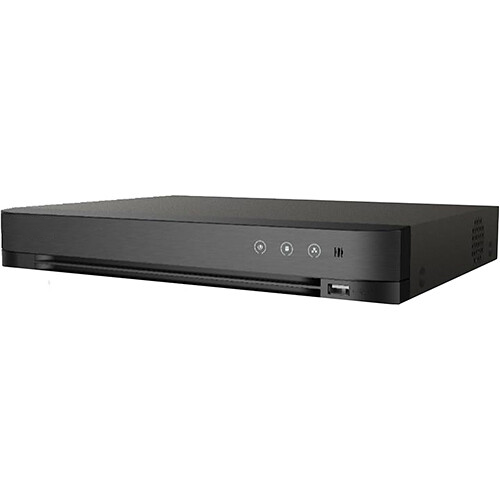

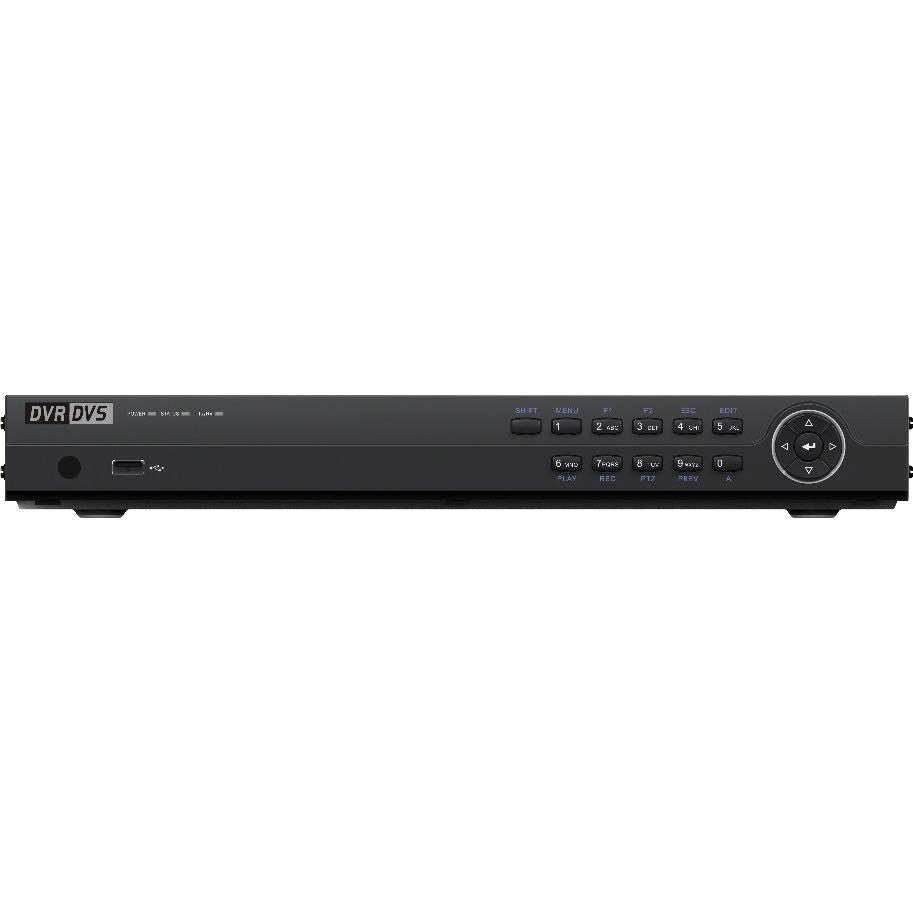

RC-AR336-8-A 8-Channel 8MP HD-TVI DVR with Human/Vehicle Detection
RC-AR336-8-A 8-Channel 8MP HD-TVI DVR with Human/Vehicle Detection
All prices are subject to change without notice.
Available in stock
8-Channel 8MP HD-TVI DVR
RC-AR336-8-A 8-Channel 8MP HD-TVI DVR
8-channel 5-in-1 HD-TVI DVR with deep-learning human & vehicle detection and coaxitron PTZ control.
Description
Bring HD-over-coax and IP together in one recorder. The RC-AR336-8-A is a 8-channel 8Β MP DVR that upgrades legacy analog systems to HD without rewiring.
- 8 analog channels β 5-in-1 HD-TVI / AHD / HDCVI / CVBS / IP
- Records up to 8 MP with H.265 Pro+ compression
- Deep-learning Motion Detection 2.0 β human & vehicle
- Coaxitron PTZ control over the same coax cable
- Simultaneous HDMI and VGA output
- 2 Γ SATA HDD, up to 10 TB per disk
Product Overview
The RC-AR336-8-A is a 8-channel 8Β MP HD-TVI DVR that records 5-in-1 analog cameras (HD-TVI / AHD / HDCVI / CVBS) plus IP channels at resolutions up to 8Β MP with efficient H.265Β Pro+ compression. Deep-learning Motion Detection 2.0 classifies human and vehicle targets to cut false alarms, and coaxitron lets you control PTZ cameras over the existing coax β a drop-in upgrade path from legacy analog systems.
5-in-1 Hybrid
HD Recording
Smart Function
Output
Storage & Build
Additional Information
Full technical specification matrix for the RC-AR336-8-A.
| Video / Audio Input | |
|---|---|
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ξ©), coaxitron support |
| Signal Input | 5-in-1: HD-TVI / AHD / HDCVI / CVBS / IP |
| Encoding | |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | Main stream: 8 MP@8 fps / 5 MP@12 fps / 3K@12 fps / 4 MP@15 fps / 3 MP@18 fps / 1080p / 720p / WD1 / 4CIF / CIF |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Audio Compression | G.711u |
| Video Output | |
| Output Mode | HDMI / VGA simultaneous output |
| Synchronous Playback | 8-ch |
| AI / Smart Features | |
| Motion Detection 2.0 | Deep-learning human & vehicle classification (up to 4 channels) |
| Smart Events | Line crossing, intrusion, motion detection; VCA alarm recording |
| Storage | |
| HDD | 2 Γ SATA (2 HDDs) |
| Capacity | Up to 10 TB per disk |
| External Interface | |
| Serial Interface | RS-485 (half-duplex) |
| USB | 2 Γ USB (front + rear) |
| General | |
| Power Supply | DC 12V |
| Consumption (without HDD) | β€ 15 W |
| Chassis | 1U |
| Dimensions (W Γ D Γ H) | 380 Γ 320 Γ 48 mm (15.0β³ Γ 12.6β³ Γ 1.9β³) |
| Weight (without HDD) | β€ 1.78 kg (3.9 lb) |
Download
Get the complete RC-AR336-8-A specification sheet as a printable PDF for quotes, submittals and installation planning.
β© Download spec sheet (PDF)Add a Surveillance Hard Drive
WD Purple drives are built for 24/7 surveillance recording. Choose a capacity β sold separately, ships with your recorder.
