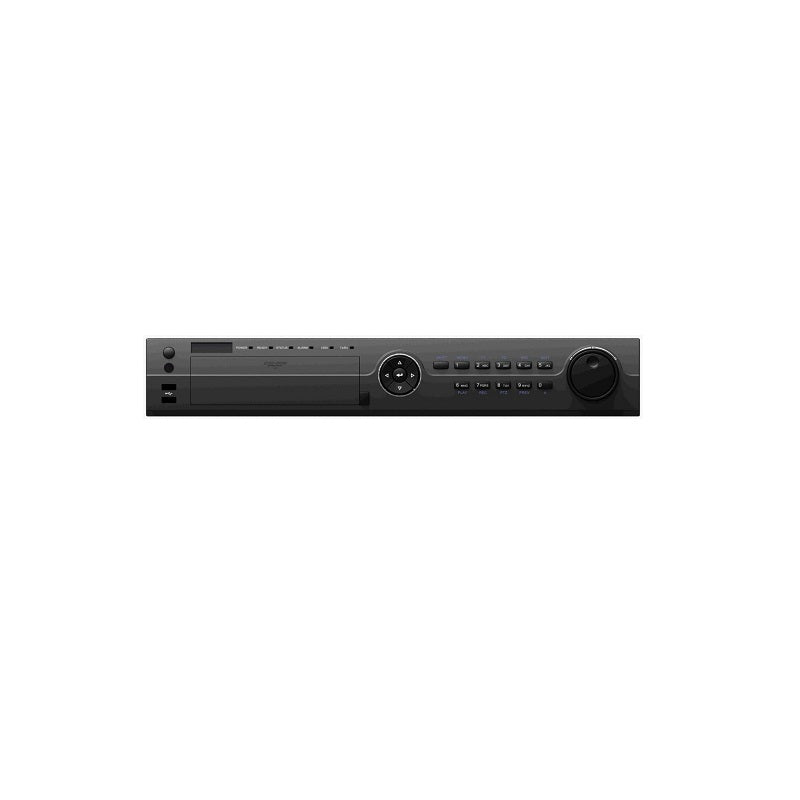

RC-AR536-32 32-Channel 8MP HD-TVI DVR — 5-in-1, 4-Bay
RC-AR536-32 32-Channel 8MP HD-TVI DVR — 5-in-1, 4-Bay
All prices are subject to change without notice.
Available in stock
32-Channel 8MP HD-TVI DVR
RC-AR536-32 32-Channel 8MP HD-TVI DVR
32-channel 5-in-1 HD-TVI DVR with deep-learning human & vehicle detection and coaxitron PTZ control.
Description
Bring HD-over-coax and IP together in one recorder. The RC-AR536-32 is a 32-channel 8 MP DVR that upgrades legacy analog systems to HD without rewiring.
- 32 analog channels — 5-in-1 HD-TVI / AHD / HDCVI / CVBS / IP
- Records up to 8 MP with H.265 Pro+ compression
- Deep-learning Motion Detection 2.0 — human & vehicle
- Coaxitron PTZ control over the same coax cable
- Simultaneous HDMI and VGA output
- 4 × SATA HDD, up to 10 TB per disk
Product Overview
The RC-AR536-32 is a 32-channel 8 MP HD-TVI DVR that records 5-in-1 analog cameras (HD-TVI / AHD / HDCVI / CVBS) plus IP channels at resolutions up to 8 MP with efficient H.265 Pro+ compression. Deep-learning Motion Detection 2.0 classifies human and vehicle targets to cut false alarms, and coaxitron lets you control PTZ cameras over the existing coax — a drop-in upgrade path from legacy analog systems.
5-in-1 Hybrid
HD Recording
Smart Function
Output
Storage & Build
Additional Information
Full technical specification matrix for the RC-AR536-32.
| Video / Audio Input | |
|---|---|
| Analog Video Input | 32-ch BNC interface (1.0 Vp-p, 75 Ω), coaxitron support |
| Signal Input | 5-in-1: HD-TVI / AHD / HDCVI / CVBS / IP |
| Incoming / Outgoing Bandwidth | 320 Mbps / 256 Mbps |
| Encoding | |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | 8 MP / 3K / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Audio Compression | G.711u |
| Video Output | |
| Output Mode | HDMI / VGA simultaneous output |
| Synchronous Playback | 16-ch |
| AI / Smart Features | |
| Motion Detection 2.0 | Deep-learning human & vehicle classification (deep-learning) |
| Smart Events | Line crossing, intrusion, motion detection; VCA alarm recording |
| Storage | |
| HDD | 4 × SATA (4 HDDs) |
| Capacity | Up to 10 TB per disk |
| External Interface | |
| Serial Interface | RS-485, RS-232 |
| USB | 2 × USB (front + rear) |
| Remote Connections | 128 |
| General | |
| Power Supply | 100–240 VAC |
| Consumption (without HDD) | ≤ 55 W |
| Chassis | 1.5U |
| Dimensions (W × D × H) | 445 × 400 × 71 mm (17.5″ × 15.7″ × 2.8″) |
| Weight (without HDD) | ≤ 7 kg (15.4 lb) |
Download
Get the complete RC-AR536-32 specification sheet as a printable PDF for quotes, submittals and installation planning.
