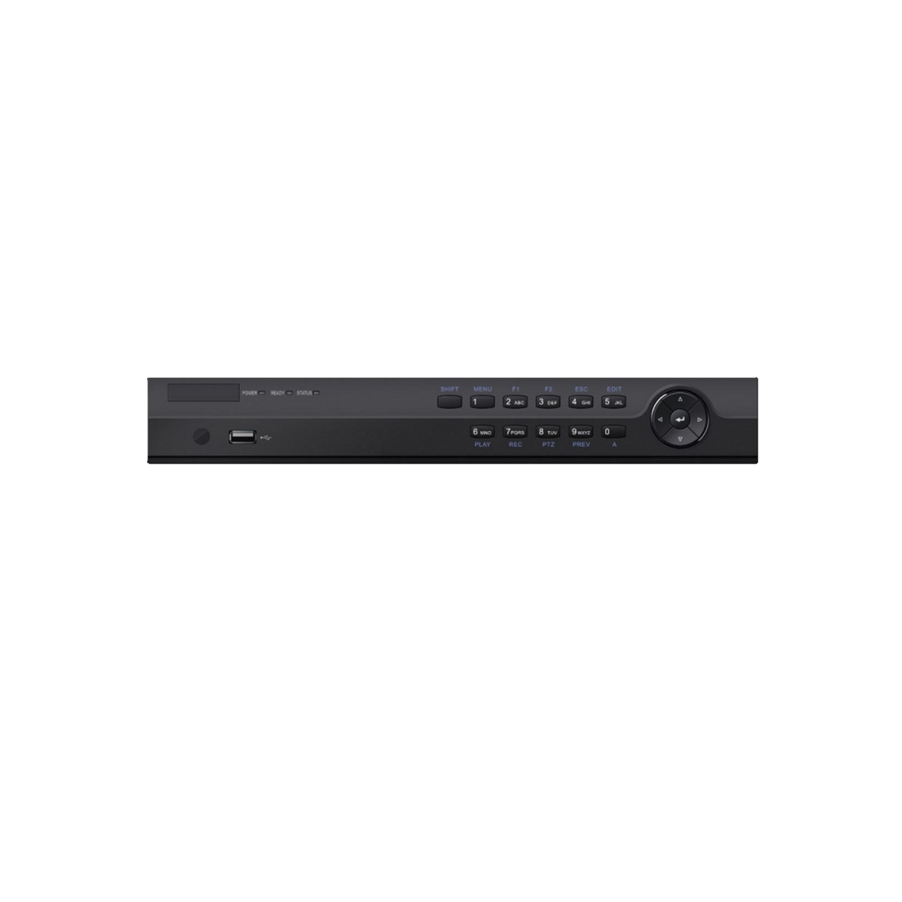

RC-NR21P6-16D 16-Channel 4K AI NVR with 16-Port PoE

Name: RC-NR21P6-16D 16-Channel 4K AI NVR with 16-Port PoE
Brand: Redcore
SKU: RC-NR21P6-16D
Price: 259.00 USD
Availability: InStock

Vendor: Redcore

Type: NVR

SKU: RC-NR21P6-16D

Shipping calculated at checkout.

All prices are subject to change without notice.

Available in stock

4K AI Network Video Recorder

RC-NR21P6-16D 16-Channel 4K AI NVR

Sixteen built-in PoE ports, 4K recording and deep-learning analytics for larger systems.

Description

A single-box solution for larger camera systems. Connect up to sixteen IP cameras directly to the recorder, capture 8 MP (4K) per channel with H.265+ compression, and drive 4K HDMI plus a simultaneous VGA output.

16 IP camera inputs with 16 independent PoE ports (IEEE 802.3 af/at, ≤ 200 W)
Records up to 8 MP (4K) per channel · 160 Mbps incoming bandwidth
Independent HDMI (up to 4K) and VGA outputs for dual-monitor viewing
Motion Detection 2.0 — human & vehicle target classification
H.265+ compression saves 50–70% storage versus H.264
Two 3.5″ SATA bays (up to 8 TB each) · free cloud mobile app

Product Overview

The RC-NR21P6-16D is a 16-channel network video recorder with sixteen built-in PoE ports, so a large camera fleet powers and connects over single Ethernet runs with no separate switch. It records each channel at up to 8 MP (4K) with 160 Mbps incoming bandwidth, applies deep-learning Motion Detection 2.0 for human and vehicle classification, and supports two-way audio and third-party ONVIF cameras. Two SATA bays hold up to 8 TB each, and the AC-powered 1U chassis is built for continuous operation.

Professional & Reliability

1U rack-ready chassis385 × 315 × 52 mm metal enclosure for racks or shelves.

Wide operating range-10 °C to +55 °C, 10–90% humidity.

AC powered100–240 VAC, 50–60 Hz universal input, ≤ 15 W without HDD.

HD Video Output

4K HDMIHDMI up to 3840 × 2160 for crisp 4K live view.

Simultaneous VGAIndependent VGA output up to 1920 × 1080 for a second display.

H.265+ codecH.265+ / H.265 / H.264+ / H.264, up to 8-ch @ 1080p decode.

Storage & Playback

Dual SATA2 × SATA bays, up to 8 TB per disk for long retention.

16-ch playback16-channel synchronous playback with instant & smart playback.

Quota managementPer-channel HDD quota allocation to protect key streams.

Smart Function

Motion Detection 2.0Deep-learning human & vehicle classification cuts false alarms.

VCA analyticsLine-crossing and intrusion detection with VCA alarm recording.

Two-way audioTalk back through compatible cameras or intercom points.

Network & PoE Access

16 PoE ports16 × RJ-45 10/100 Mbps self-adaptive PoE, IEEE 802.3 af/at, ≤ 200 W.

Gigabit uplink1 × RJ-45 10/100/1000 Mbps self-adaptive network interface.

Remote & ONVIFFree cloud mobile app (P2P), web access and ONVIF third-party cameras.

Additional Information

Full technical specification matrix for the RC-NR21P6-16D.

Video / Audio Input
IP Video Input	16-ch, up to 8 MP
Two-Way Audio Input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	80 Mbps
Video / Audio Output
HDMI Output	1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Audio Output	1-ch, RCA (Linear, 1 kΩ)
Frame Rate	Main stream: 50 fps (P) / 60 fps (N); Sub-stream: 50 fps (P) / 60 fps (N)
Decoding & Playback
Decoding Format	H.265+ / H.265 / H.264+ / H.264
Recording Resolution	8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding Capability	2-ch @ 4K or 8-ch @ 1080p
Synchronous Playback	16-ch
Playback	Instant playback, smart search, smart playback
AI / Smart Features
Motion Detection 2.0	Human and vehicle target classification
VCA Detection	Line crossing, intrusion detection; VCA alarm recording
Storage Management	HDD quota allocation per channel
Network
Network Interface	1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocols	TCP/IP, DHCP, Cloud P2P, DNS, DDNS, NTP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Third-Party Cameras	ONVIF-compatible
Remote Access	Free cloud mobile app (P2P), web browser access
PoE
PoE Ports	16 × RJ-45 10/100 Mbps self-adaptive
PoE Standard	IEEE 802.3 af/at
Max PoE Power	≤ 200 W
Storage
HDD	2 × SATA interfaces (2 HDDs)
Capacity	Up to 8 TB per disk
External Interface
USB	1 × USB 2.0 (front) + 1 × USB 3.0 (rear)
General
Power Supply	100–240 VAC, 50–60 Hz
Consumption	≤ 15 W (without HDD, PoE off)
Working Temperature	-10 °C to +55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Chassis	1U
Dimensions (W × D × H)	385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
Weight	≤ 2.6 kg (5.7 lb) without HDD

Download

Get the complete RC-NR21P6-16D specification sheet as a printable PDF for quotes, submittals and installation planning.

⇩ Download spec sheet (PDF)

PDF · RC-NR21P6-16D Specification Sheet
