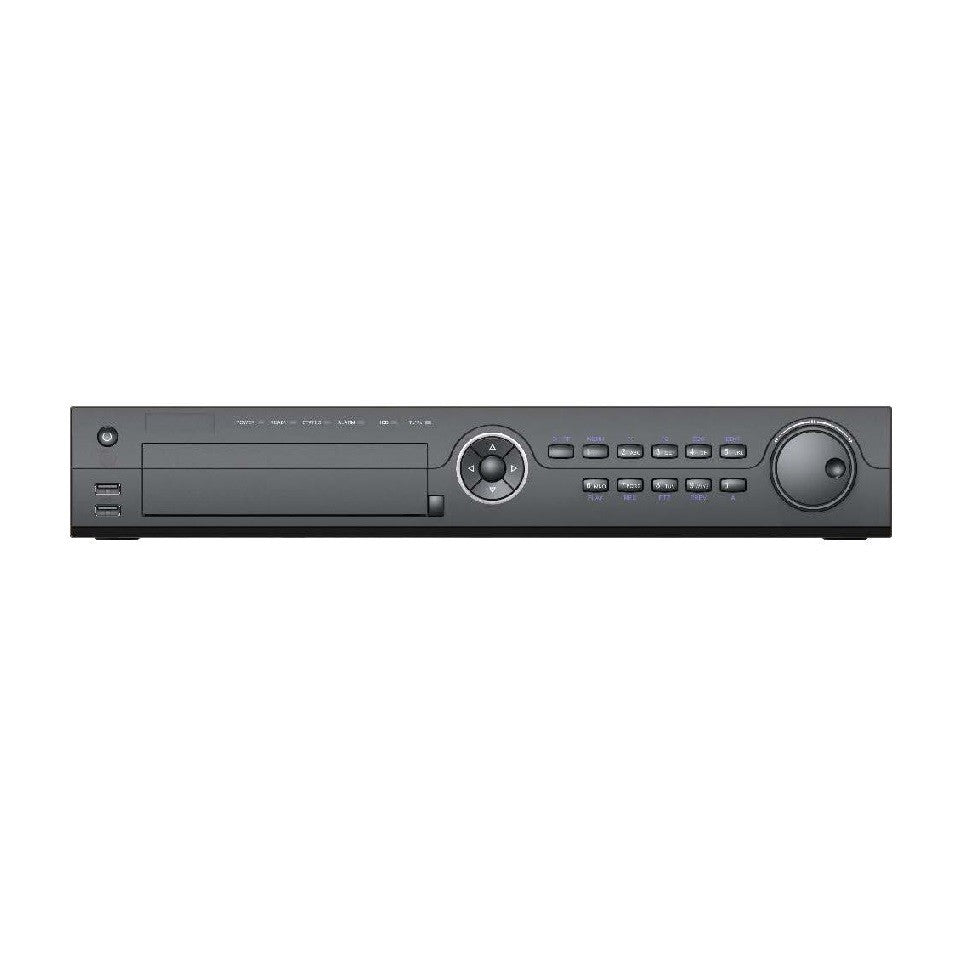

RC-NV732-P16 32-Channel 8K AI NVR with 16-Port PoE, 4 HDD Bays
RC-NV732-P16 32-Channel 8K AI NVR with 16-Port PoE, 4 HDD Bays
All prices are subject to change without notice.
Available in stock
8K AI Super Network Video Recorder
RC-NV732-P16 32-Channel 8K Super NVR with 16-Port PoE
Thirty-two channels, 8K output and 16 plug-and-play PoE ports with advanced analytics.
Description
The RC-NV732-P16 is a 1.5U 32-channel 8K super NVR with 16 plug-and-play PoE ports. It delivers 320 Mbps incoming bandwidth, records up to 32 MP, and drives 8K video walls with advanced analytics including license-plate recognition and POS integration.
- 32 IP cameras · 16 plug-and-play PoE ports
- 320 Mbps incoming · records up to 32 MP
- Dual HDMI up to 8K / dual 4K + independent VGA
- VCA events, heat maps & license-plate recognition
- POS overlay and POS-triggered recording
- TLS-encrypted streaming · 4 SATA up to 16 TB each
Product Overview
The RC-NV732-P16 is a 1.5U 32-channel 8K super NVR with 16 plug-and-play PoE ports and 320 Mbps of incoming bandwidth. It records at up to 32 MP and drives 8K or dual-4K video walls across two HDMI outputs, with advanced analytics — VCA events, heat maps, and license-plate recognition — plus POS integration and TLS-encrypted streaming.
Massive Capacity
Video Wall
Advanced Analytics
Integration
Security & Storage
Additional Information
Full technical specification matrix for the RC-NV732-P16.
| Video / Audio Input | |
|---|---|
| IP Video Input | 32-ch, up to 32 MP |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video / Audio Output | |
| HDMI Output | 2 × HDMI (HDMI1/VGA simultaneous, HDMI2/VGA independent), up to 8K |
| VGA Output | Independent VGA |
| Decoding & Playback | |
| Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF |
| Synchronous Playback | 16-ch |
| AI / Smart Features | |
| Analytics | VCA events, heat maps, license-plate recognition |
| POS | Overlay on live & playback, POS-triggered recording/alarms |
| Security | TLS-encrypted streaming, double verification |
| Network | |
| Network Interface | Gigabit Ethernet |
| PoE | 16 plug-and-play PoE ports |
| Storage | |
| HDD | 4 × SATA |
| Capacity | Up to 16 TB per disk |
| General | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Consumption | ≤ 15 W (without HDD, PoE off) |
| Chassis | 1.5U rackmount |
| Dimensions (W × D × H) | 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") |
| Weight | ≤ 5 kg (11 lb) without HDD |
