SLR-B320P60 320Wh/60W Solar Power System (Heating, Operation)
SLR-B320P60 320Wh/60W Solar Power System (Heating, Operation)
Shipping calculated at checkout.
All prices are subject to change without notice.
Available in stock
Compact off-grid solar power system for surveillance and IoT deployments where mains power is unavailable. A 320 Wh / 100 Ah lithium battery, a 60 W high-efficiency monocrystalline solar panel, and a built-in O&M monitoring module keep a 12 V camera running around the clock — no trenching, no grid connection, no monthly power bill. Modular design makes battery assembly and panel hanging straightforward for a one-person install.
Lithium Battery
- Battery capacity: 100 Ah · rated energy 320 Wh
- Output voltage 9 V to 12.6 V · max. output current 1.5 A · limited charge voltage 7 V
- Input: 4-pin quick connector · output: DC 12 V circular connector · RS485 supported
- Built-in heating module for low-temperature operation, protecting battery life and charge safety
- Protections: high/low temperature, overcharge, under-voltage
- Dimensions 419.2 × 118 × 336.5 mm · 4.61 kg · FCC

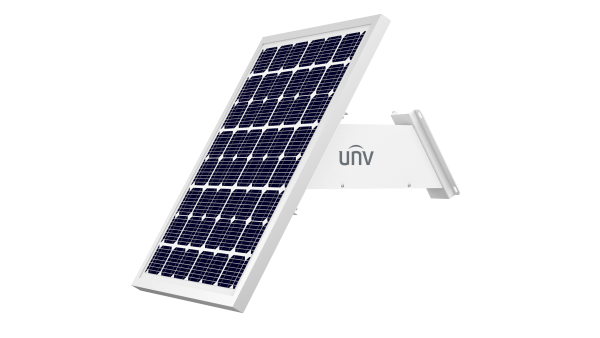

Solar Panel (60 W)
- 60 W peak power · monocrystalline silicon · ≥22% cell conversion efficiency
- 4.5 V operating voltage · 13.33 A operating current · 5.4 V open circuit · 14.66 A short circuit
- High-transmittance tempered glass, UV-resistant EVA backsheet, anodized aluminum alloy frame
- Back surface field and electrodes use high-quality metal pastes for good conductivity
- Dimensions 765 × 395 × 25 mm · 4.42 kg · hanging design for easy installation
Operation & Maintenance Module
- Remote battery, voltage and system-health monitoring · RS485 · reset button
- Open circuit voltage 12 V · typical draw 0.84 W · max. 2 W
- Indicator: blinking green = normal operation, steady red = network error
- Overlays battery percentage OSD on the camera's live video
- Dimensions 90 × 90 × 38.3 mm · 150 g · IPX5 · FCC
- Includes one-to-two power cable
General
- Operating temperature -20 °C to 55 °C (discharge) · -20 °C to 45 °C (charge)
- Total weight 9.18 kg · metal casing, windproof and rainproof
- Suitable pole diameter 67 mm to 110 mm
- Designed for use with 4G cameras where there is no power and no network
